One Legendary Layout. Two Ways to Build It.
Whether you’re looking for a rock-solid foundation or a fully maxed-out expedition rig, we’ve taken the guesswork out of configuring your van. The Kinabalu is available in two curated, value-driven packages: Core and Pro. By bundling our most popular off-grid systems and premium add-ons together, we pass the manufacturing efficiencies directly to you. It means you get a cohesive, expertly engineered setup without the stress or the premium price tag of choosing options à la carte. Select the tier that matches your lifestyle and hit the trails sooner.
MSRP $150,000Finance from $920/mo.
Payment example: 20% down, 20-year term, 6.89% APR sample rate through our financing partner intoRV. Rates and terms vary by applicant.
MSRP $190,000Finance from $1,170/mo.
Payment example: 20% down, 20-year term, 6.89% APR sample rate through our financing partner intoRV. Rates and terms vary by applicant.
5.05 out of 5
37 Google reviews (opens in a new tab)
2026 Highland Kinabalu.
The do-it-all Kinabalu 144 pairs all-terrain Mercedes AWD capability with a family-ready interior. Four belted seats, a rear lounge that converts to a bed, and elite off-grid power in a van that parks like a daily driver.
| Specification | Core$150,000 | Pro$190,000 |
|---|---|---|
| Drivetrain | AWD | AWD |
| Sit/Sleep | 4 / 2 | 4 / 2 |
| Max Sit/Sleep | 5 / 4 | 5 / 4 |
| Battery (kWh) | 5.0 kWh EcoFlow | 8.4 kWh Lithionics/Victron |
| Solar (W) | Available | 300 W |
| Heating (W) | 2000 W Webasto | 2000 W Webasto |
| Fan (CFM) | 2x 1765 CFM NomadicArk | 1x 1765 CFM NomadicArk |
| A/C (BTU) | Available | 9.5K BTU RecPro |
| Fresh Water | 6 Gal | 15 Gal |
| Grey Water | 6 Gal | 21 Gal |
| Water Heater | Available with upgraded plumbing system | Pundmann 2.4 Gal |
Introducing the Kinabalu
The Do-It-All Sprinter 144 Conversion
One van for your whole life. The Kinabalu is engineered for people who refuse to choose between the family car and the adventure rig, just as comfortable on school runs and city errands as it is at a tailgate, a trailhead, or a week off-grid. Built on the AWD Mercedes Sprinter 144, it parks in normal spaces Monday through Friday and disappears up a forest road on Saturday.

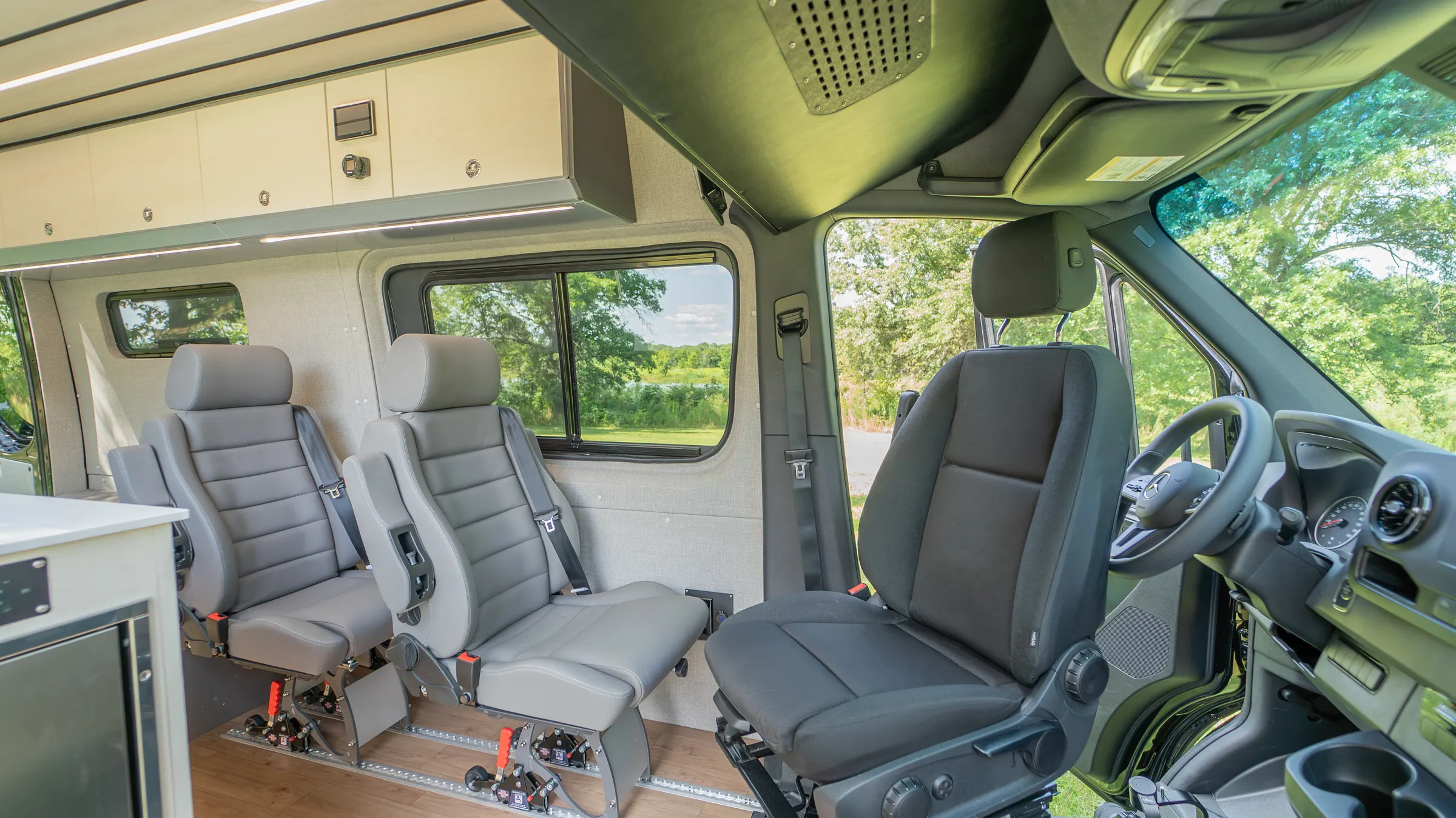

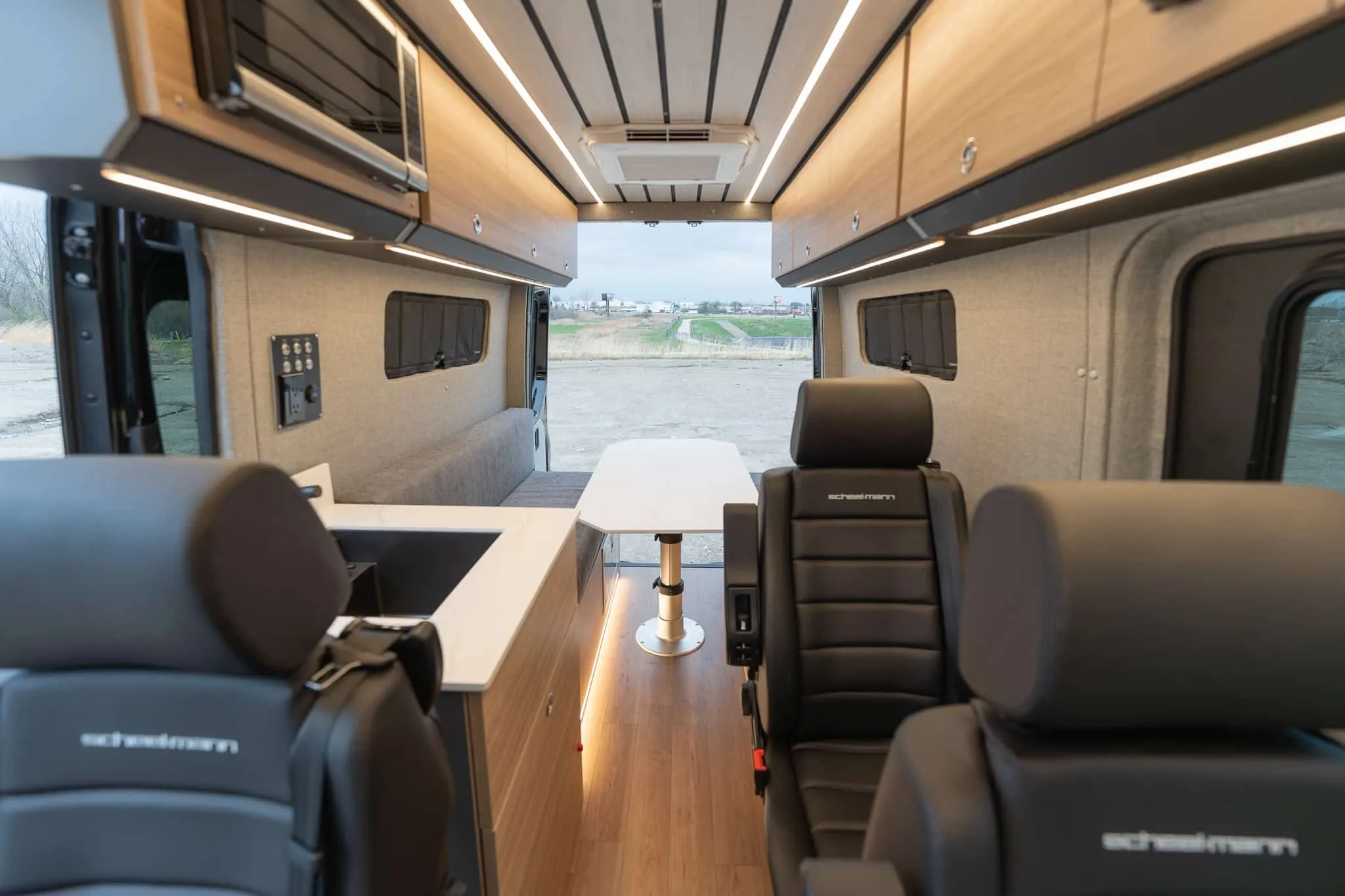

The Kinabalu seats four with two L-track mounted RRE Global Smartseats behind the cab. Mid-van, the kitchen galley carries a deep stainless sink, an induction cooktop, and a solid-surface countertop under warm galley glow lighting. And in the rear, the Kinabalu’s signature space: a lounge built around a collapsible floor-mount table. Its genuinely comfortable for board games, homework, big dinners, or doing nothing at all. At night, the table collapses and converts the lounge to a bed.
Manufactured with our aluminum-framed architecture and advanced four-season climate control, every Kinabalu carries up to 8.4 kWh of lithium power and true four-season insulation, and can be specced with 300 W of rooftop solar. It’s the van that never asks what kind of weekend it’s going to be.
Movie night, anywhere. The Kinabalu is the only Highland van with a Smart TV entertainment console — included on every Pro build and available on Core. Stream from the trailhead on 8.4 kWh of lithium power, plug in a game console for the back-seat crew, or host the tailgate everyone remembers.
One van for your whole life. The Kinabalu is engineered for people who refuse to choose between the family car and the adventure rig, just as comfortable on school runs and city errands as it is at a tailgate, a trailhead, or a week off-grid. Built on the AWD Mercedes Sprinter 144, it parks in normal spaces Monday through Friday and disappears up a forest road on Saturday.
The Kinabalu seats four with two L-track mounted RRE Global Smartseats behind the cab. Mid-van, the kitchen galley carries a deep stainless sink, an induction cooktop, and a solid-surface countertop under warm galley glow lighting. And in the rear, the Kinabalu’s signature space: a lounge built around a collapsible floor-mount table. Its genuinely comfortable for board games, homework, big dinners, or doing nothing at all. At night, the table collapses and converts the lounge to a bed.
Manufactured with our aluminum-framed architecture and advanced four-season climate control, every Kinabalu carries up to 8.4 kWh of lithium power and true four-season insulation, and can be specced with 300 W of rooftop solar. It’s the van that never asks what kind of weekend it’s going to be.
Movie night, anywhere. The Kinabalu is the only Highland van with a Smart TV entertainment console — included on every Pro build and available on Core. Stream from the trailhead on 8.4 kWh of lithium power, plug in a game console for the back-seat crew, or host the tailgate everyone remembers.
- SEAT
- 4
- (expandable to 5, multiple seating options available)
- SLEEP
- 2
- (expandable to 4 w/ rooftop tent)
- Chassis
- Sprinter 144
- Drivetrain
- AWD
Renders and photography show vans built with optional equipment. Technical Details lists what Core and Pro include as standard.
Book a ConsultThe Highland Vans Difference: Premium Materials. Unmatched Overlanding Capability.
Your peace of mind is our engineering standard. We utilize elite materials, precision manufacturing, and proven off-grid technologies to create a Sprinter campervan that outperforms the rest at this price point. Built to endure extreme environments, the Kinabalu guarantees uncompromised performance and true off-grid freedom for years to come.
Seating Options

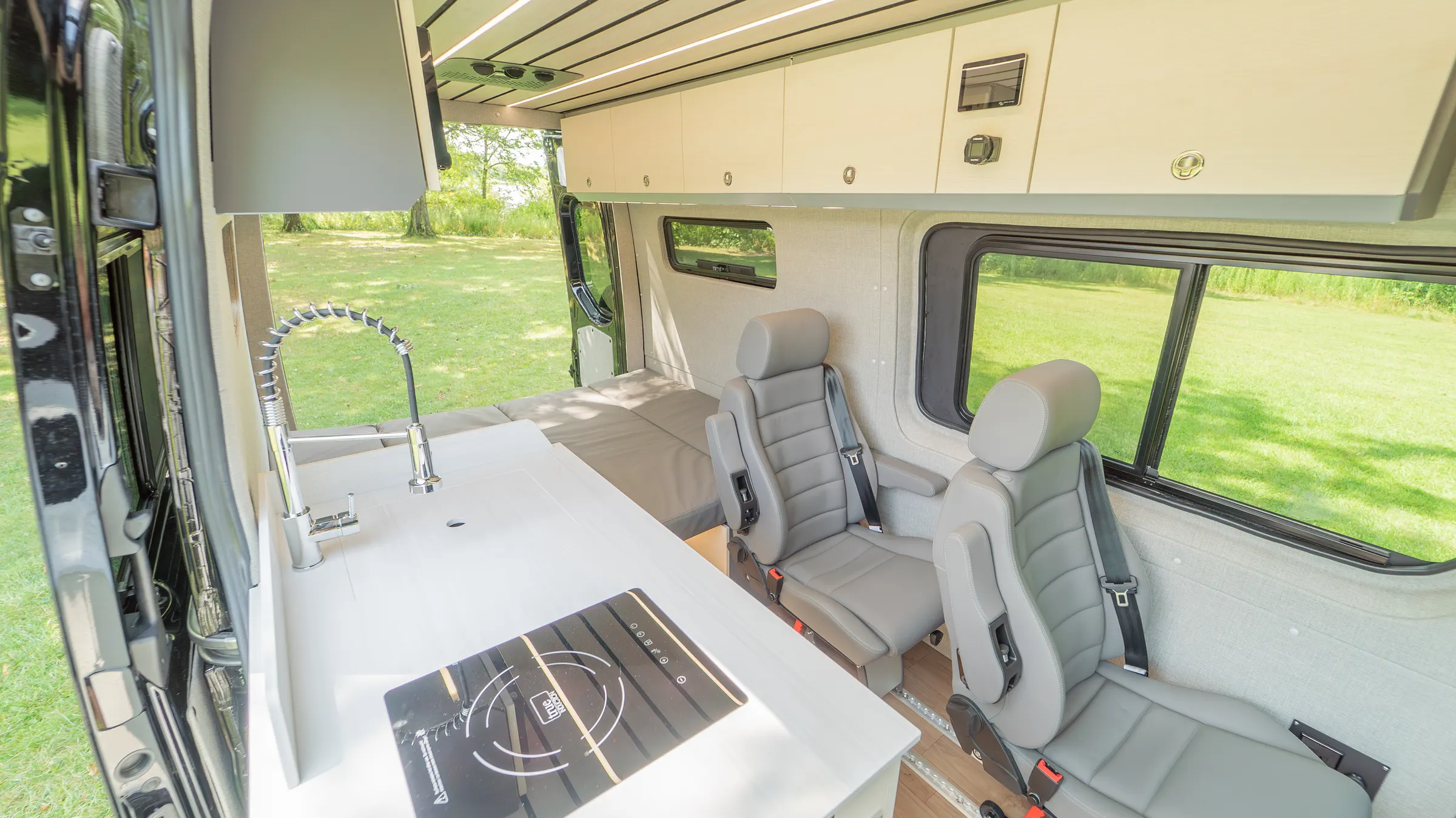

The Kinabalu comes standard with belted seating for four: two L-track mounted RRE Global Smartseats behind the cab, mounted for real-world family duty. It’s the only van in our lineup where the whole crew rides belted every day. Multiple seating options are available, including pull-tested, ergonomic scheel-mann seats as an upgrade.

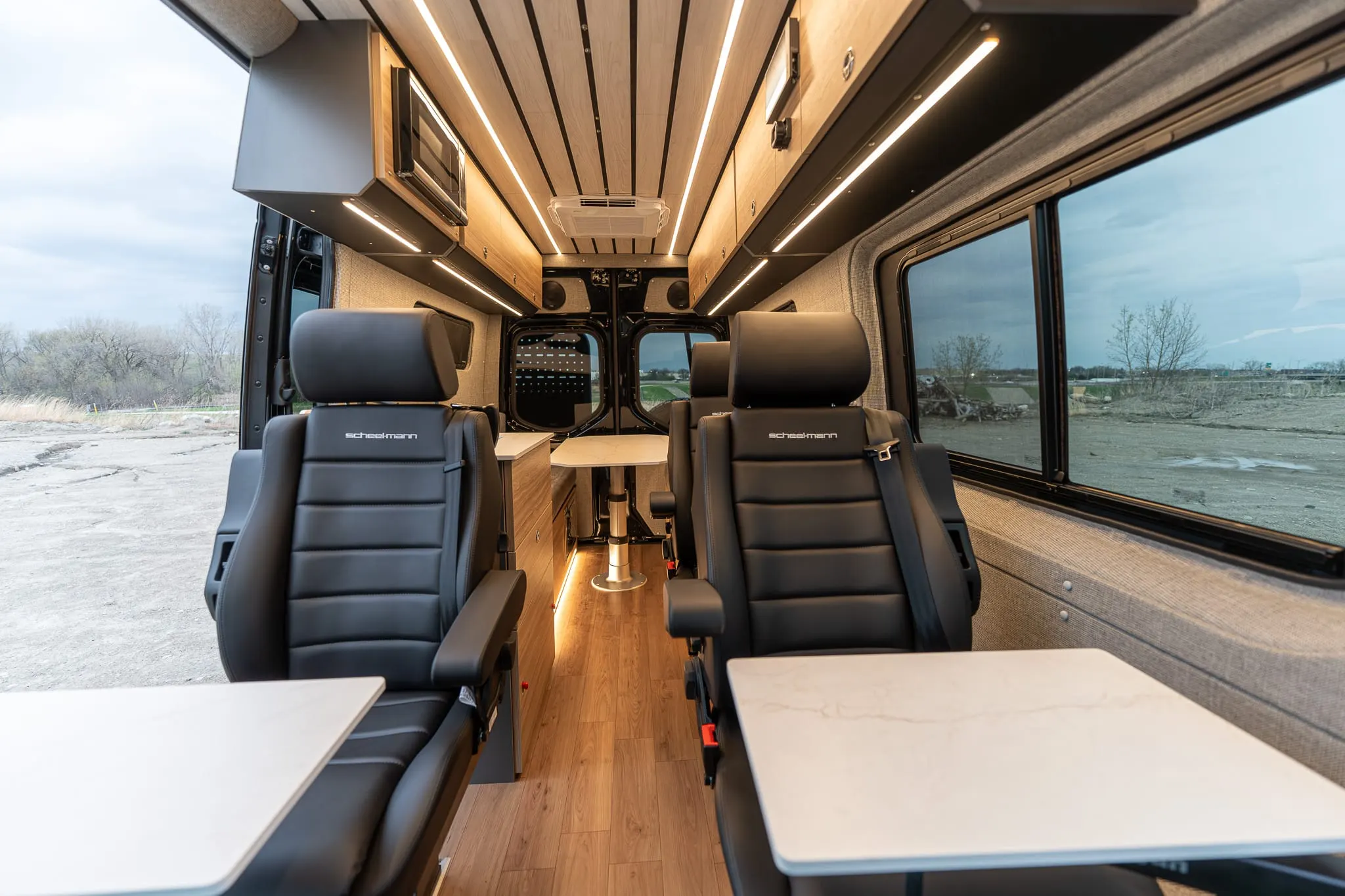

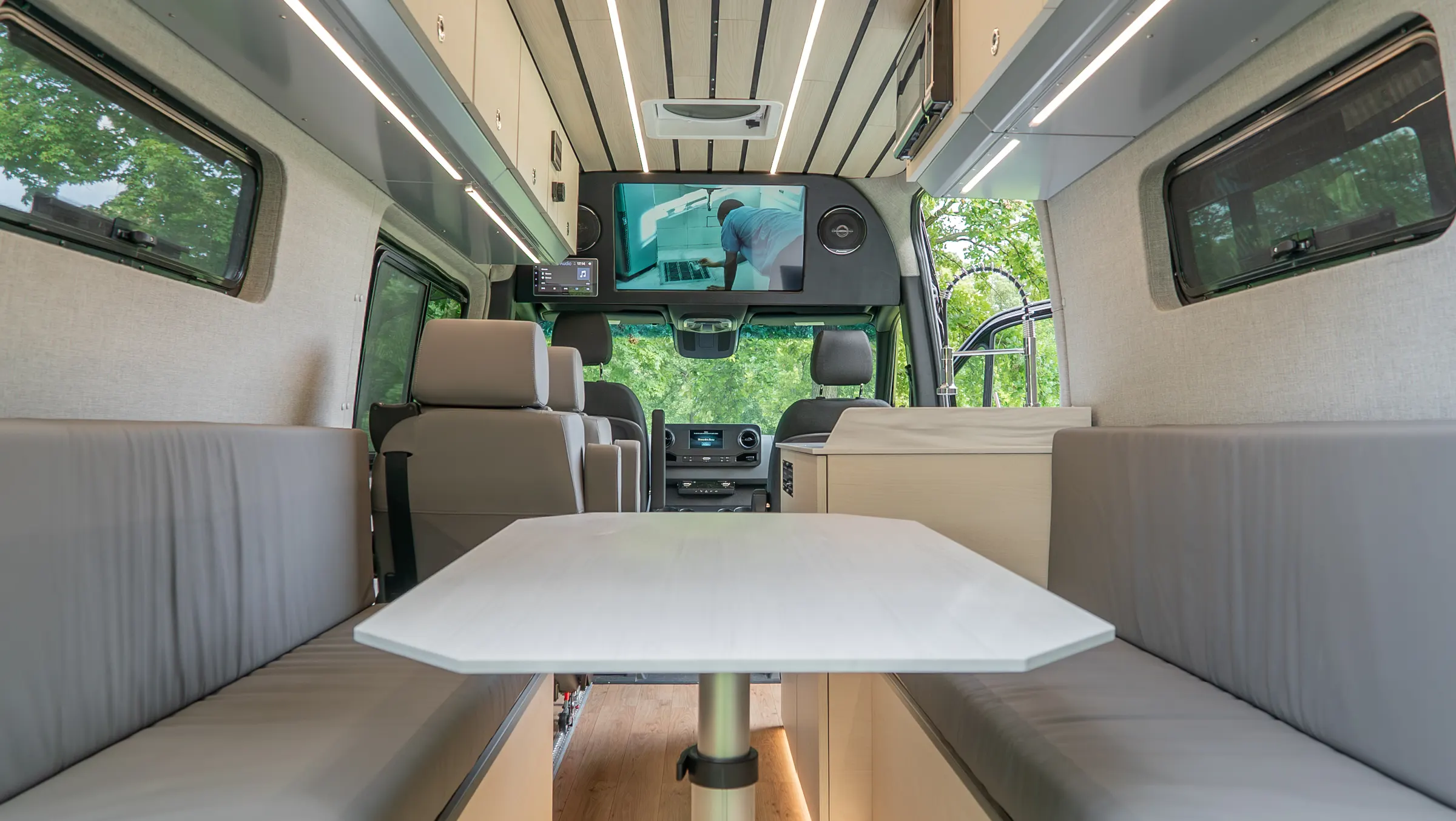

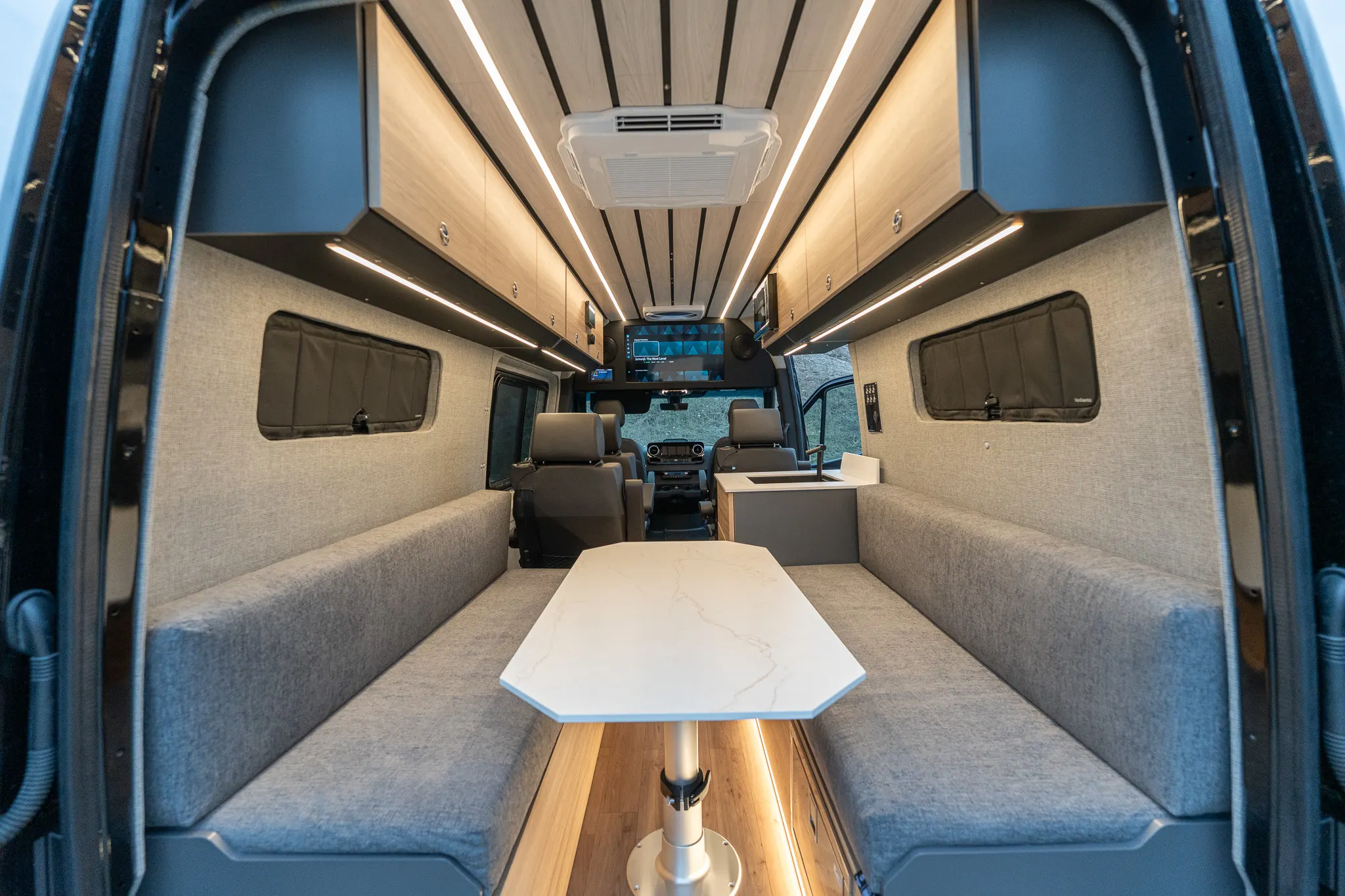

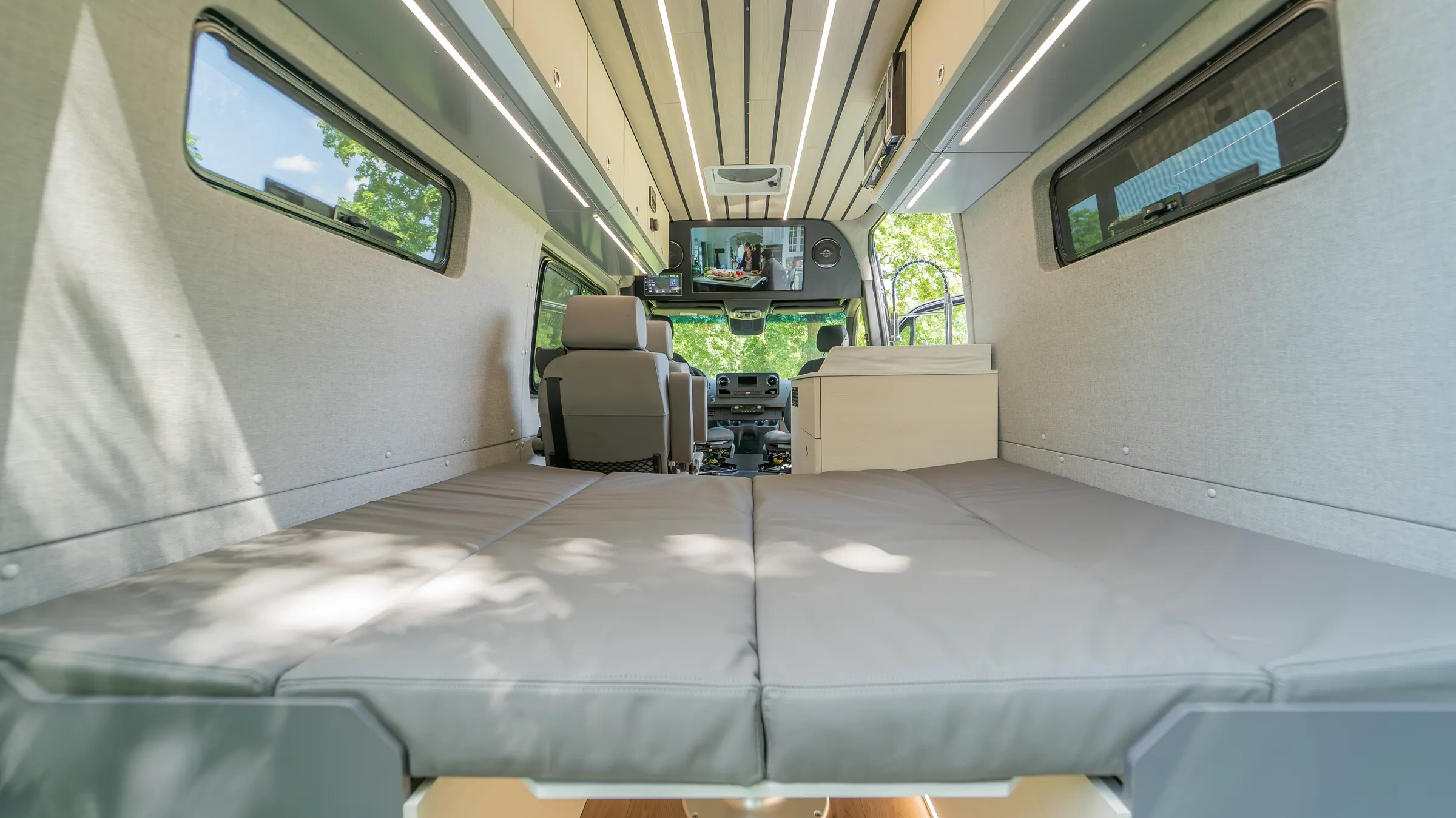

Convertible Lounge & Bench Bed System
The Kinabalu’s rear lounge does double duty by design. By day, bench seating with a table for meals, games, and hangouts; by night, it converts in minutes to a comfortable bed. No nightly furniture Tetris — just a lounge that becomes a bedroom and back again.
HPL Laminates & Baltic Birch
We craft the Kinabalu’s interior using premium Baltic Birch plywood finished with High-Pressure Laminate (HPL), creating a beautiful yet highly functional living space. This marine-grade construction provides an exceptionally solid foundation that is highly resistant to scratches, moisture, and the intense vibrations of off-road travel. Beyond their rugged durability, these superior materials deliver a sleek, modern aesthetic that is effortlessly easy to wipe down and clean after a long day on the dusty trail.
Aluminum Construction
The overhead cabinets are framed in precision-bent sheet metal aluminum, which is where the load sits above your head. These high-strength modules are lightweight and rigid, and they do not develop the squeaks, rattles, and shifts a wood frame picks up over a few thousand miles of washboard. Unlike wood or composite frames, aluminum will never rot, warp, or degrade over time.
Premium Off-Grid Appliances
We refuse to compromise on the vital systems that power your adventure, which is why we exclusively install elite components from industry-leading brands like Victron, Ecoflow, Lithionics, Webasto, and Pundmann. By utilizing only the most reputable, expedition-grade appliances on the market, we ensure your vehicle delivers ultimate reliability in the harshest environments. Furthermore, every premium component carries its own robust manufacturer warranty, providing an extra layer of uncompromising peace of mind wherever the trail takes you.
Luxurious Finishes
The Kinabalu's interior is elevated to a state of modern, high-end luxury through our meticulous selection of sophisticated finishes. By integrating seamless solid surface countertops, elegant wood grains, and harmonious premium fabrics, we create a refined environment that feels like a boutique sanctuary. This uncompromising attention to detail ensures your expedition vehicle is not just ruggedly capable on the outside, but exquisitely styled and exceptionally comfortable on the inside.
True 4-Season Climate Capability
To ensure absolute comfort in extreme environments, the Kinabalu is engineered with an advanced, multi-layer thermal architecture. We combine premium Thinsulate and rigid XPS paneling with an optional sound deadening package to create a highly efficient thermal barrier that regulates interior temperatures while drastically reducing road noise. When paired with our high-output HVAC systems, this comprehensive climate control strategy guarantees a refined, comfortable sanctuary whether you are chasing winter snow or navigating intense desert heat.
The Look of Adventure: A Refined Expedition Cabin.
The Kinabalu perfectly balances boutique luxury with uncompromising off-grid durability. We pair natural color palettes with ultra-lightweight, premium finishes to create a sophisticated sanctuary on wheels. Every design element is backed by rugged engineering, ensuring your adventure campervan interior remains flawless after years of extreme travel. Use the interactive visualizer below to configure your perfect aesthetic.

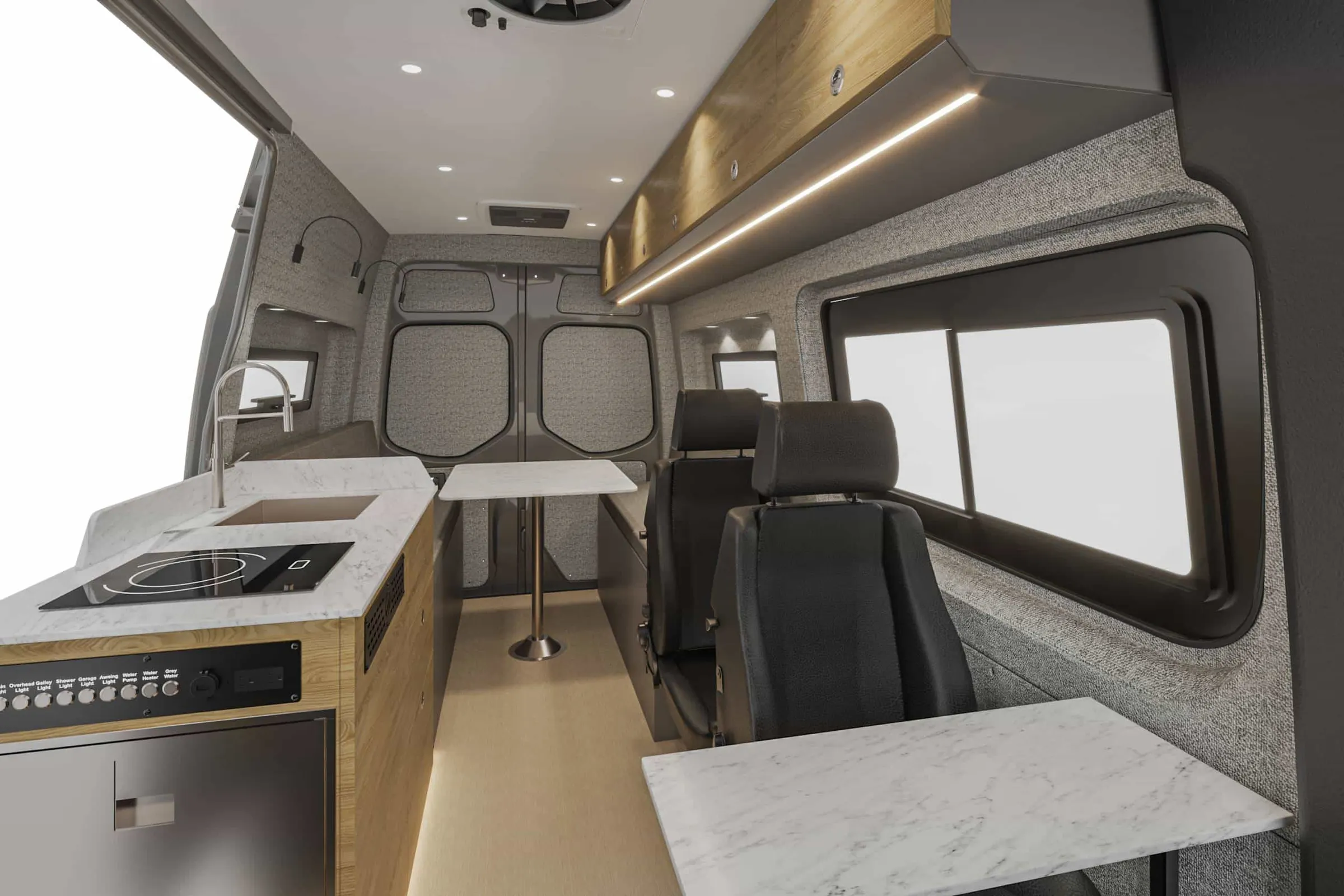

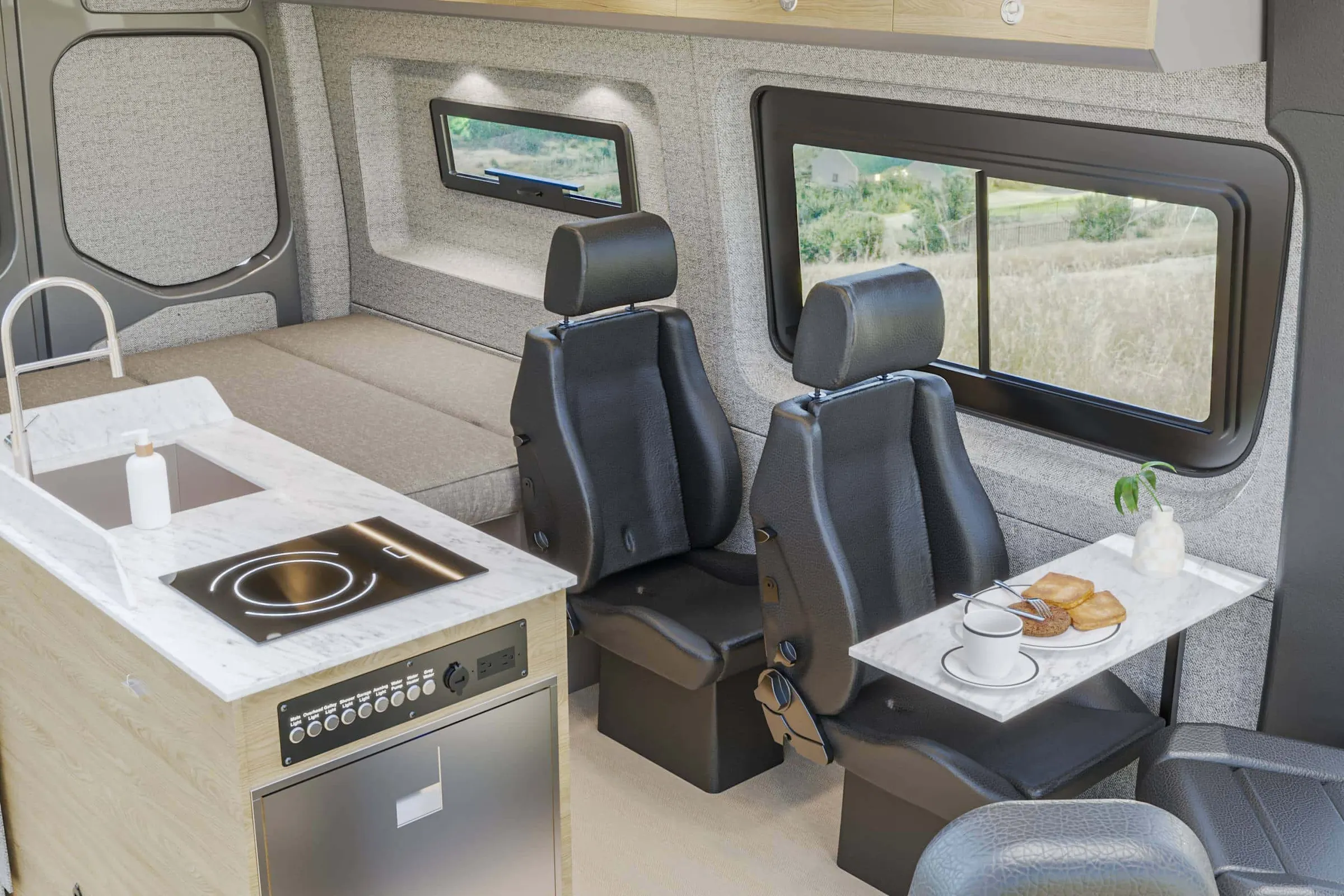

Bryson – An earthy, natural color scheme that adds a touch of warmth to your van.

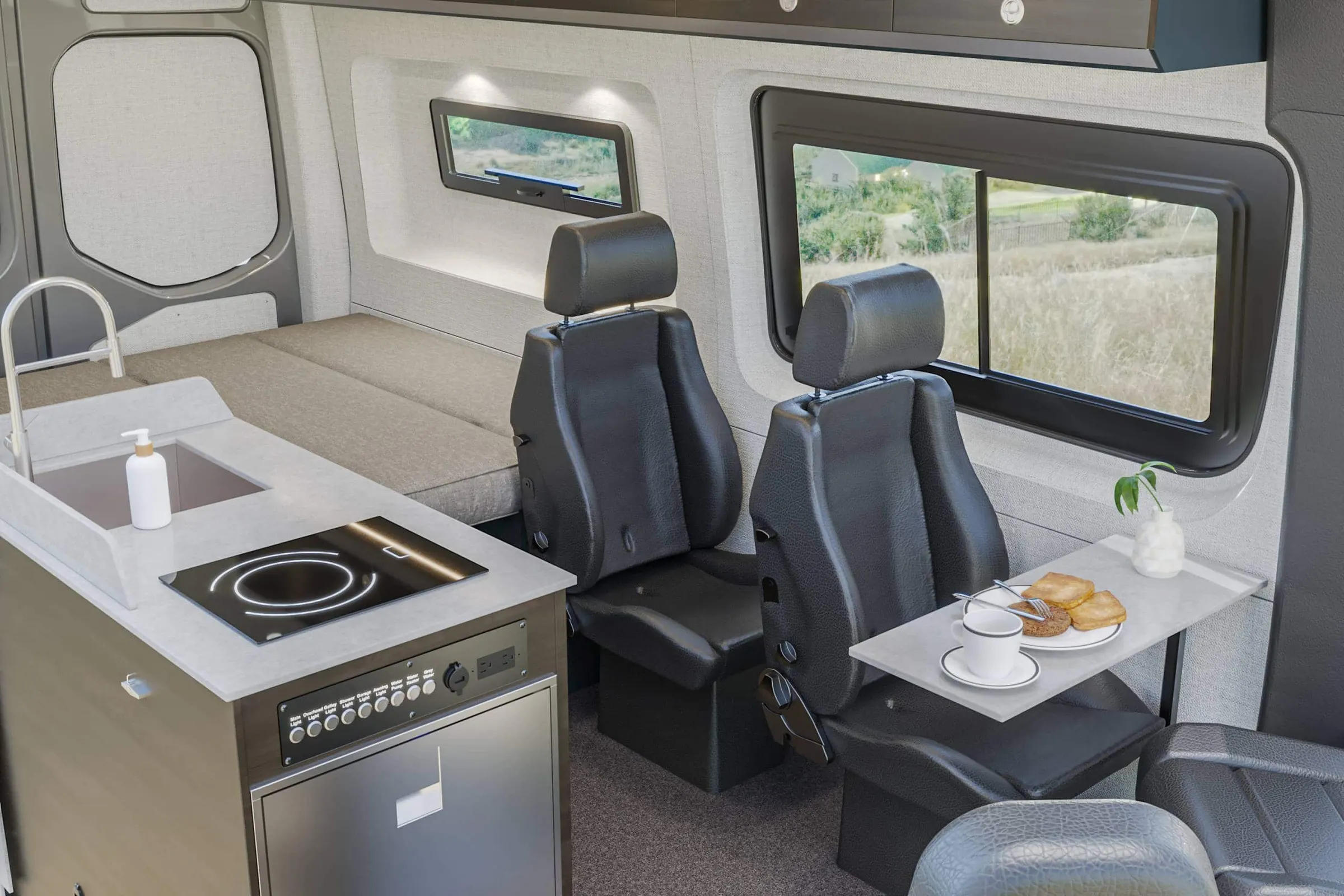

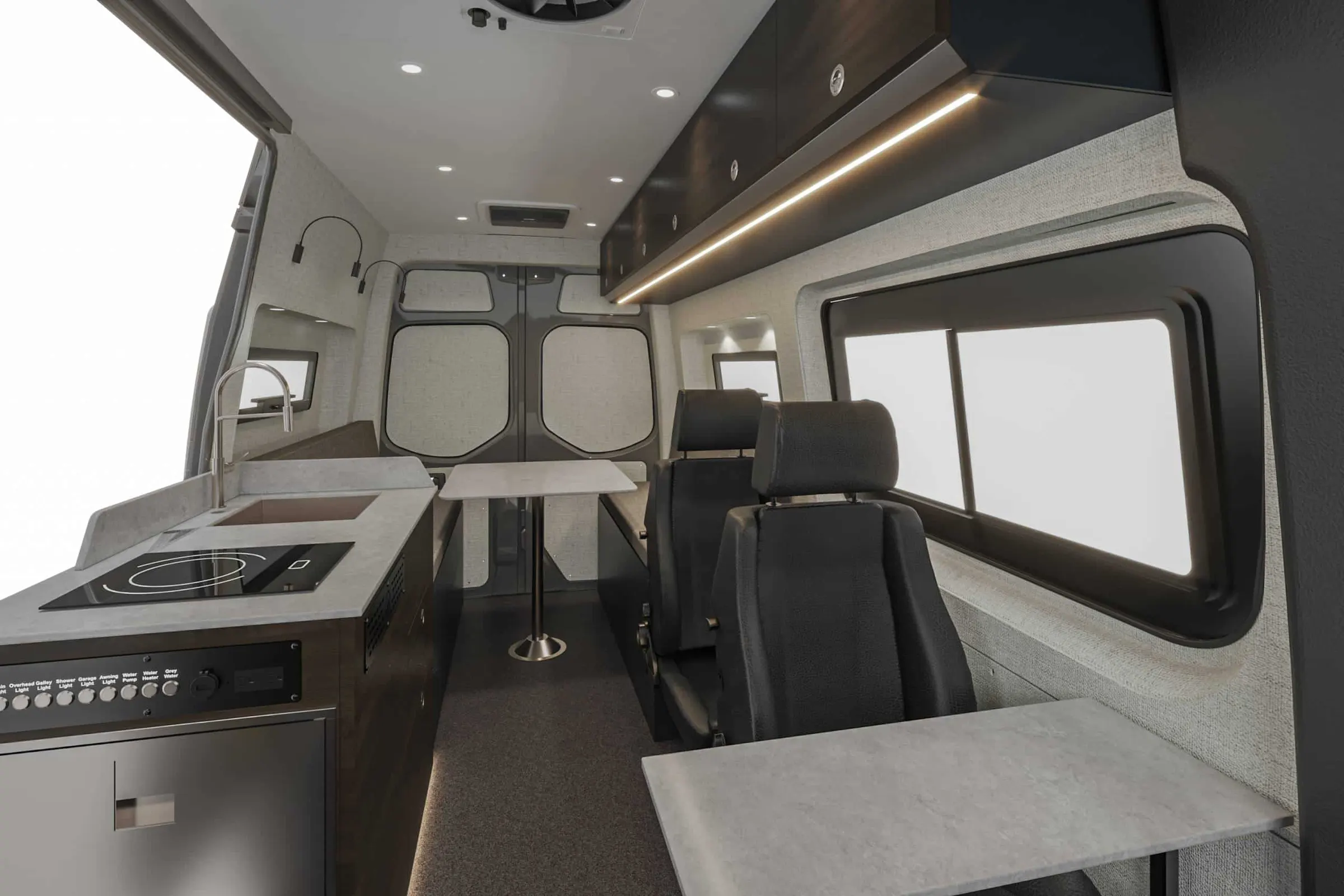

Cordova – Sleek and sophisticated, this dark color scheme is perfect for those who want a more under-stated look.

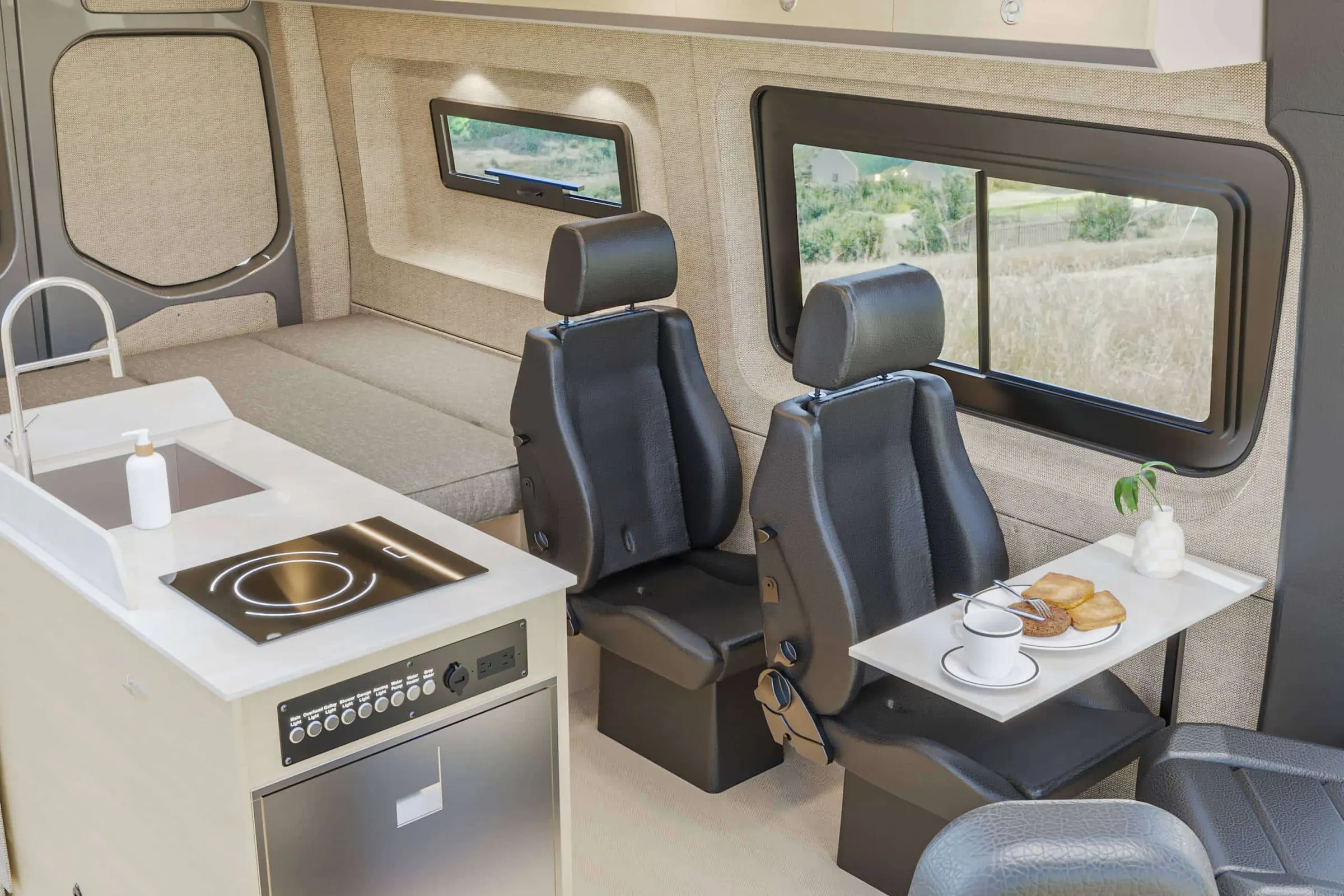

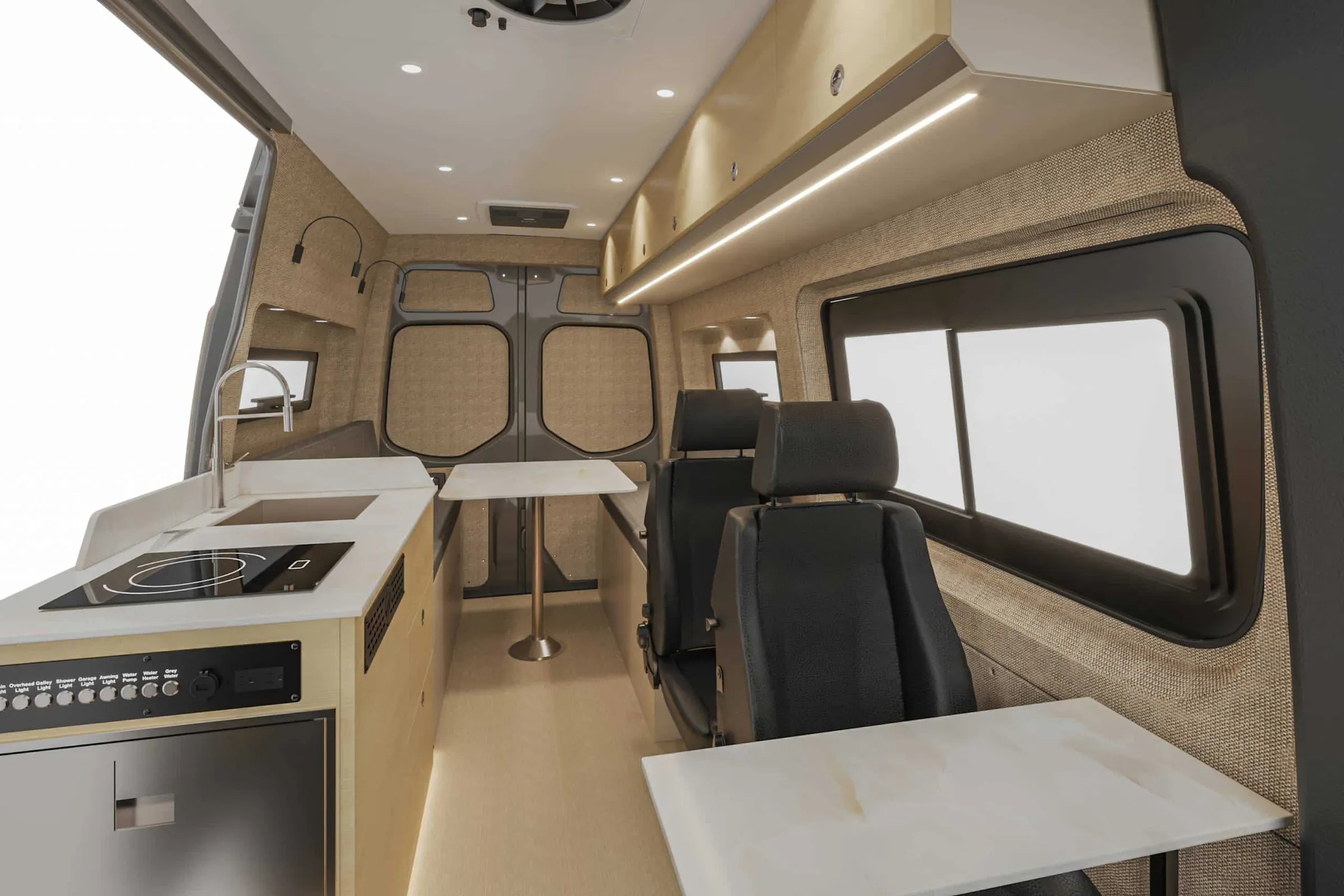

Stowe – The warm tones in this cheerful color scheme brings a sense of optimism and joy to your van.

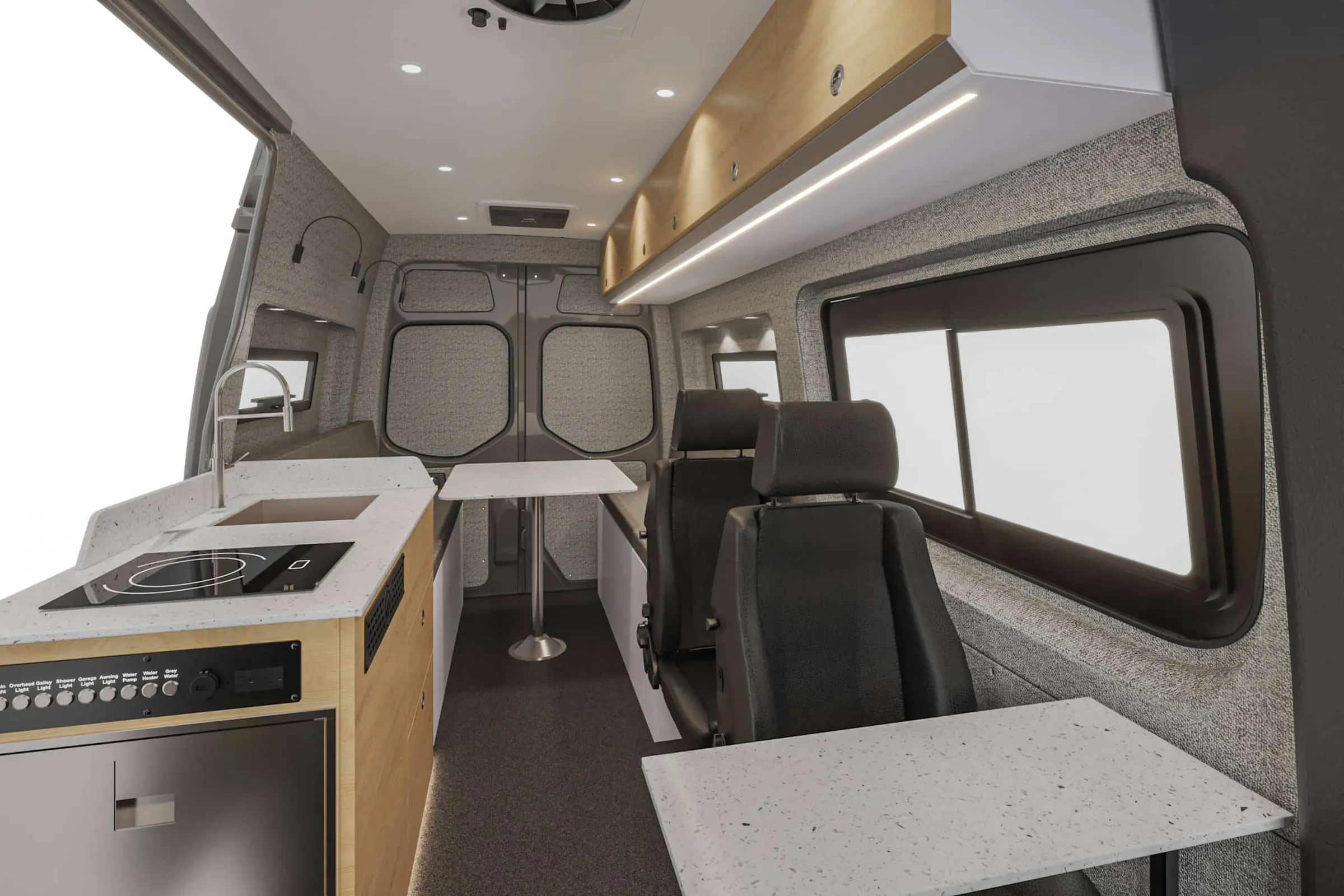

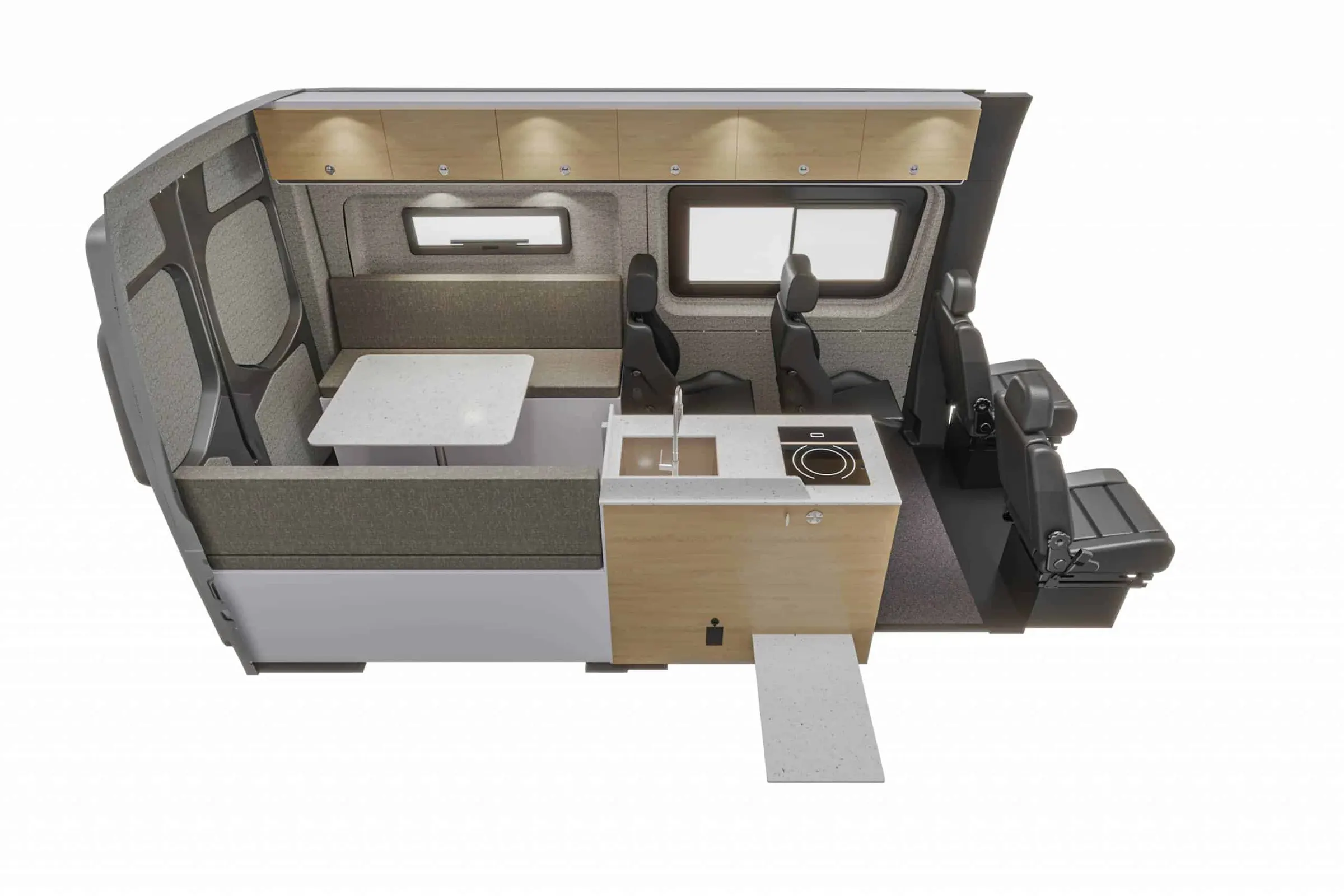

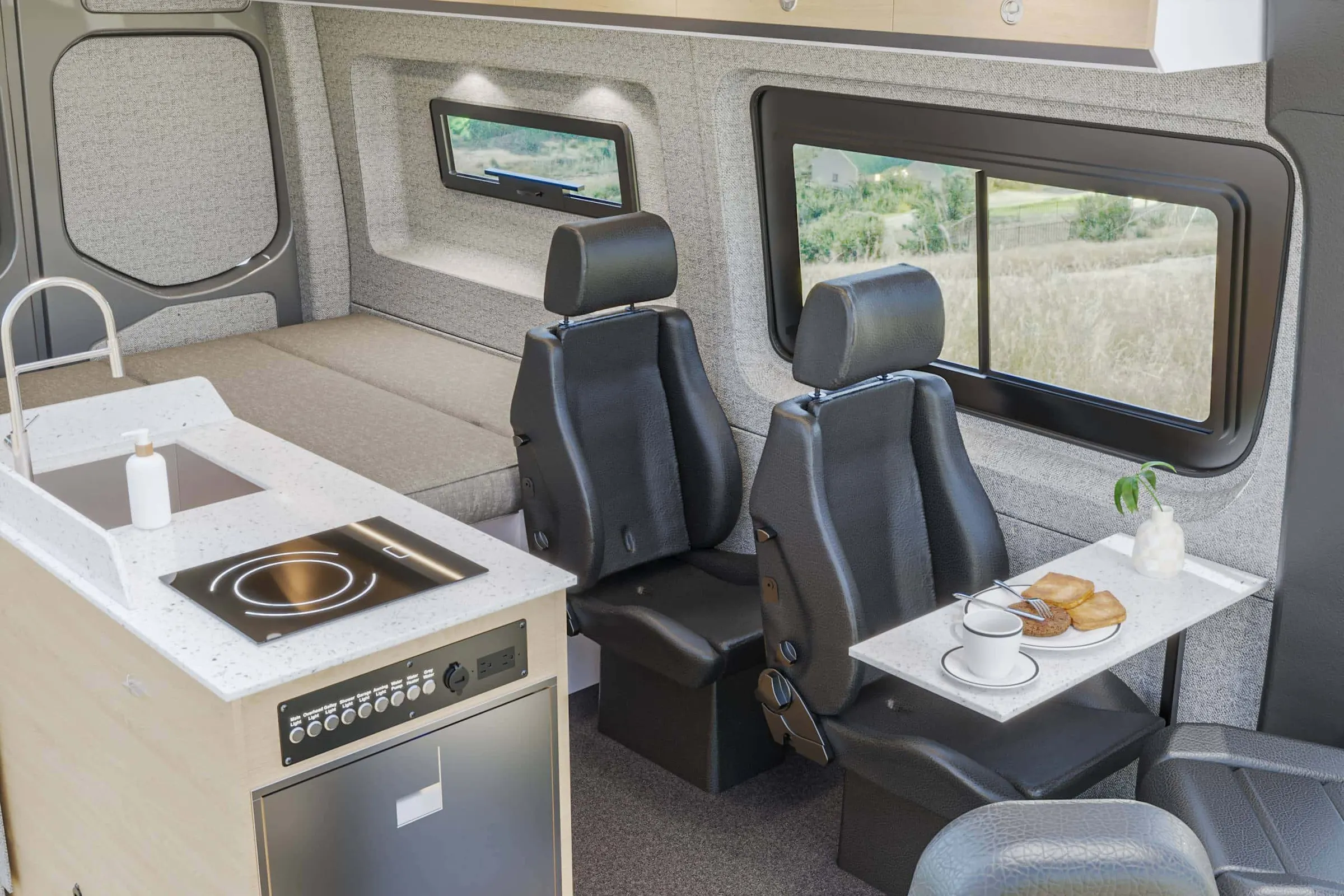

Estes – A timeless classic that never goes out of style. The whites in this color scheme are perfect for those who want a clean, minimalist look.
The Perfect Adventure Machine.
The thrill of exploration and the absolute freedom to travel make the Kinabalu the ultimate adventure machine. Step inside our completed builds to explore a spacious, practical layout that perfectly balances luxury finishes with a clean, minimalist design. Engineered specifically for the rugged demands of life on the road, this interior serves as an inviting, comfortable sanctuary after a long day on the trail. Browse the gallery below to see the Kinabalu in reality—because once you reach your destination, the next adventure is always waiting just around the corner.
A Seamless Mobile Experience
You shouldn't have to choose between hitting deadlines and hitting the trail. We designed the Kinabalu to be the ultimate mobile workspace, so taking work on the road is actually stress-free. Powered by a lithium battery bank and featuring plenty of space to set up your laptop, you can keep your gear charged and power your Starlink from deep in the woods. Get your work done with a better view, then close the laptop and step right into the wild.
Immerse Yourself in Nature
The whole point of hitting the road is to get closer to the outdoors, and the Kinabalu’s open layout makes sure you never miss a view. We designed the interior to feel incredibly spacious and airy. Just throw open the back doors, let the fresh breeze roll through, and enjoy your morning coffee with a front-row seat to nature. It’s the perfect, comfortable balance of outdoor living and a cozy indoor retreat.
Reviews from Google
What owners say
5.05 out of 5
37 Google reviews (opens in a new tab)- 5 out of 5
I want a van to drive my 5-year-old … to school and activities, to use it as my office, and to take a weekend escape in the PNW and beyond. … Airoki is the exact layout I want. A Sprinter AWD is the only choice for me given the condition of the city I live in. … with the budget I have, Highland Van built me a van that goes beyond my expectations; I appreciate the professional team, the flexibility, honesty, and kindness.
Jay Vijanjit
Posted on Google
- 5 out of 5
We could not be happier with Highlands Vans quality and the build out collaboration. … Highland Vans listened to our ideas and made them better. The result is a highly functional buildout 5 years, 34 states and 75,000 miles later. … The team is highly skilled, trust worthy and stands behind their product. We are proud customers.
Douglas Cigliana
Posted on Google
- 5 out of 5
I couldn't be any more happy that I picked Highland Vans to build my van! From the very beginning to delivery of the vehicle they were AMAZING! … The craftsmanship is top notch!!! Every cut is perfect, my windows are so sleek, and the electrical and plumbing equipment is the best! I did not need to plug in once for 2 weeks.
Yvonne Battaglia
Posted on Google
Every Kinabalu is built to order.
Book a quick consult and we will map out your setup.
or call 866-751-7358
Functional for any Lifestyle.
The key features of the Kinabalu make this versatile Sprinter conversion ready for whatever the week throws at it - school runs, tailgates, remote workdays, and long weekends off-grid alike. From the four-seat cabin to the convertible rear lounge, every inch of this campervan is optimized to give you total freedom wherever you park.

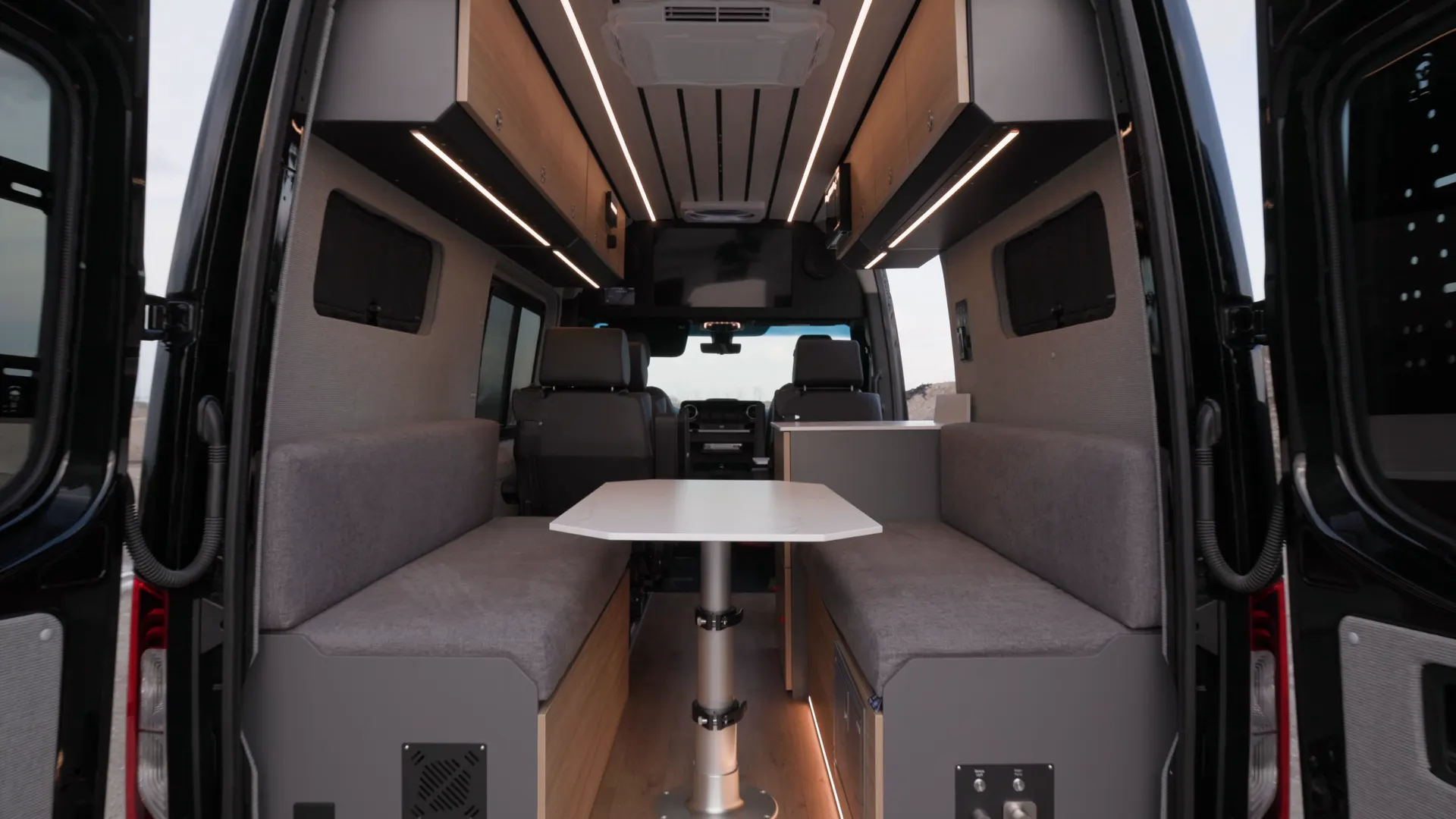

Empowering explorers.
Experience the true freedom of the trail. The Kinabalu is built to effortlessly turn the wildest landscapes into your personal basecamp—meaning your next great adventure is always right around the corner.

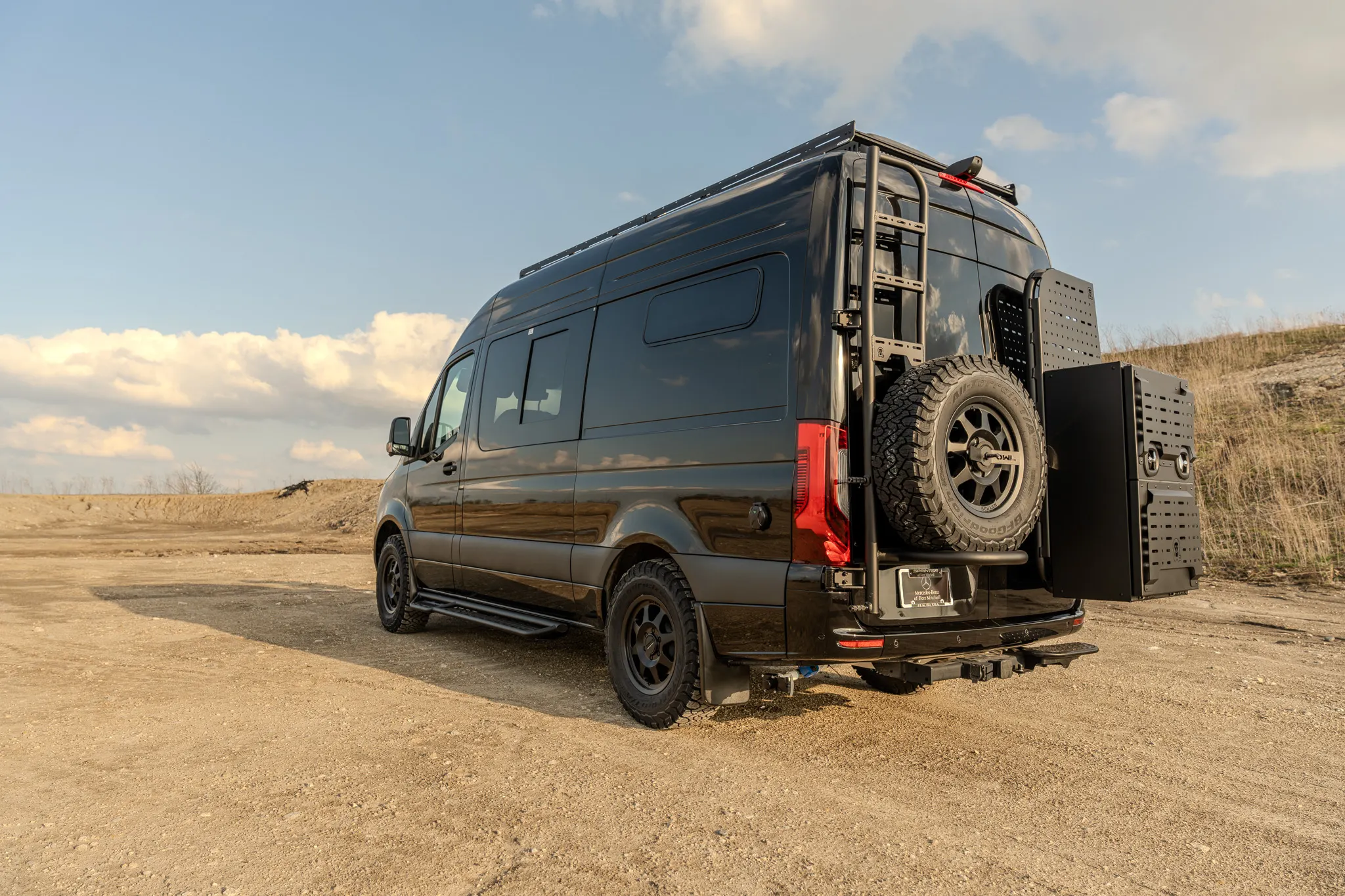

Fully Equipped for Adventure.

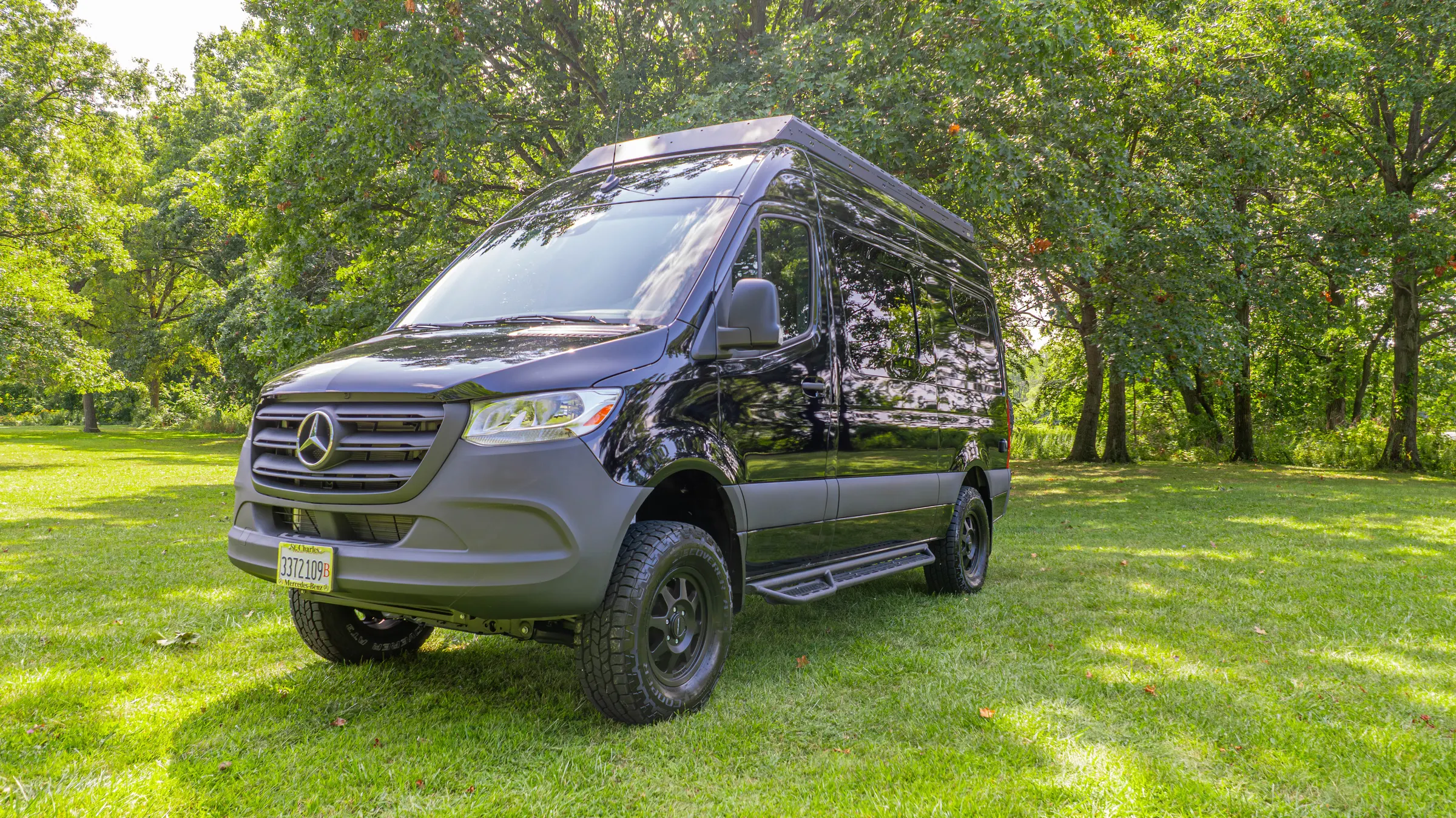

A true do-it-all rig needs an exterior that keeps up. The Kinabalu Pro is well equipped with top-tier upgrades. Roof rack, side steps, ladder and tire carrier, and off-road wheels and tires in a 144” footprint that stays easy to live with in the city. Check out the photos below to see how every exterior detail is purpose-built to take you further off the map.
The full specification is below.
If you would rather talk it through, book a quick consult and we will work out which package fits.
or call 866-751-7358
Technical Details
Every Kinabalu is built on the same rugged, ready-for-anything foundation. Dive into the interactive chart below to compare packages, explore standard features, and choose the exact upgrades you need for your lifestyle.

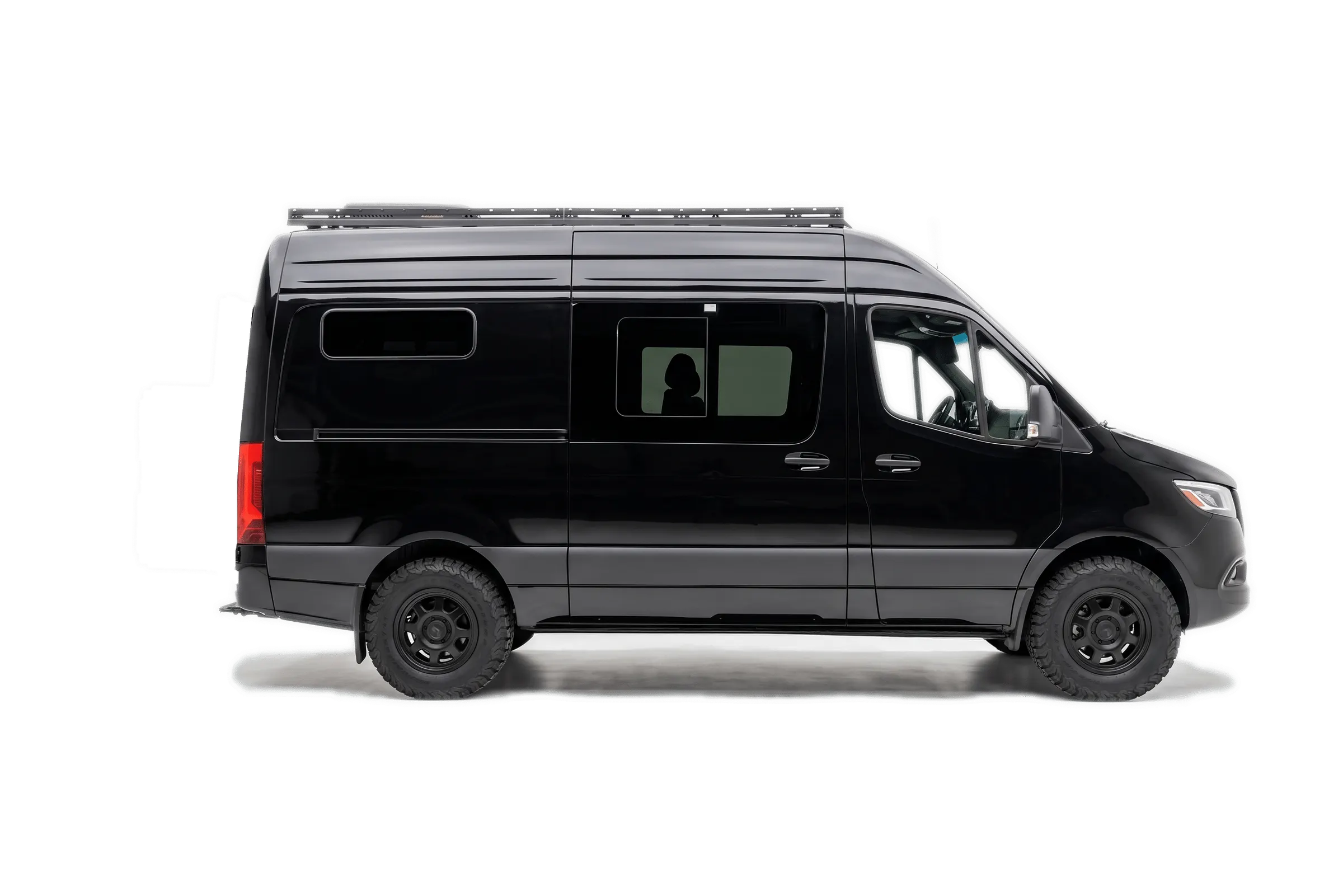

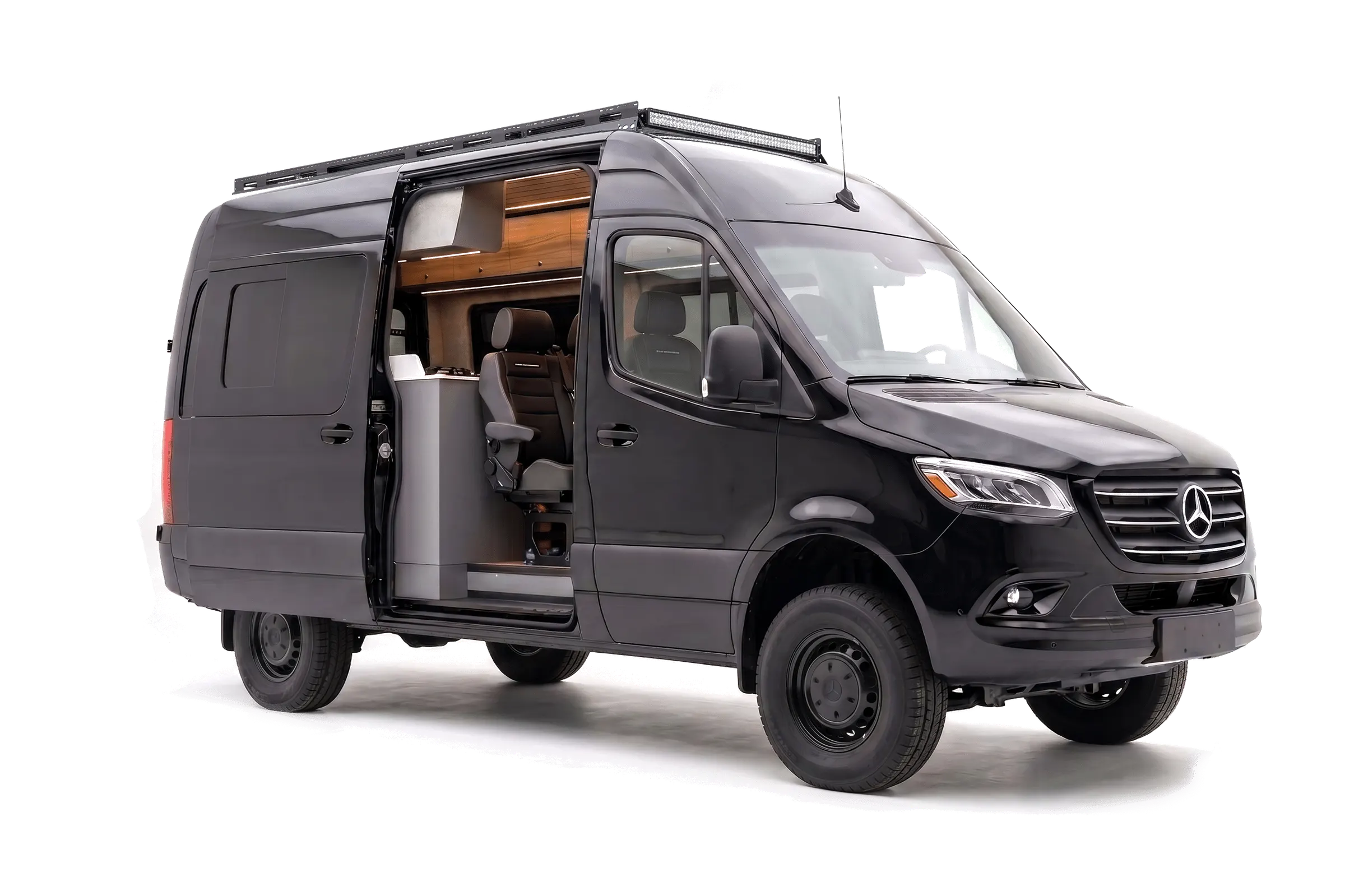

Kinabalu Core
Perfect for beginners and weekend warriors, the Core Package is a well-equipped, highly capable entry point into the Highland Vans lineup. It comes loaded with all the essential gear you need to hit the trail right away, at a more accessible price point. Designed with modularity in mind, it provides a rock-solid foundation that gives you plenty of room to grow and upgrade your rig over time as your adventures evolve.
Best For: First-time owners and budget-conscious explorers.
The Advantage: A lower initial investment with the flexibility to add upgrades later.

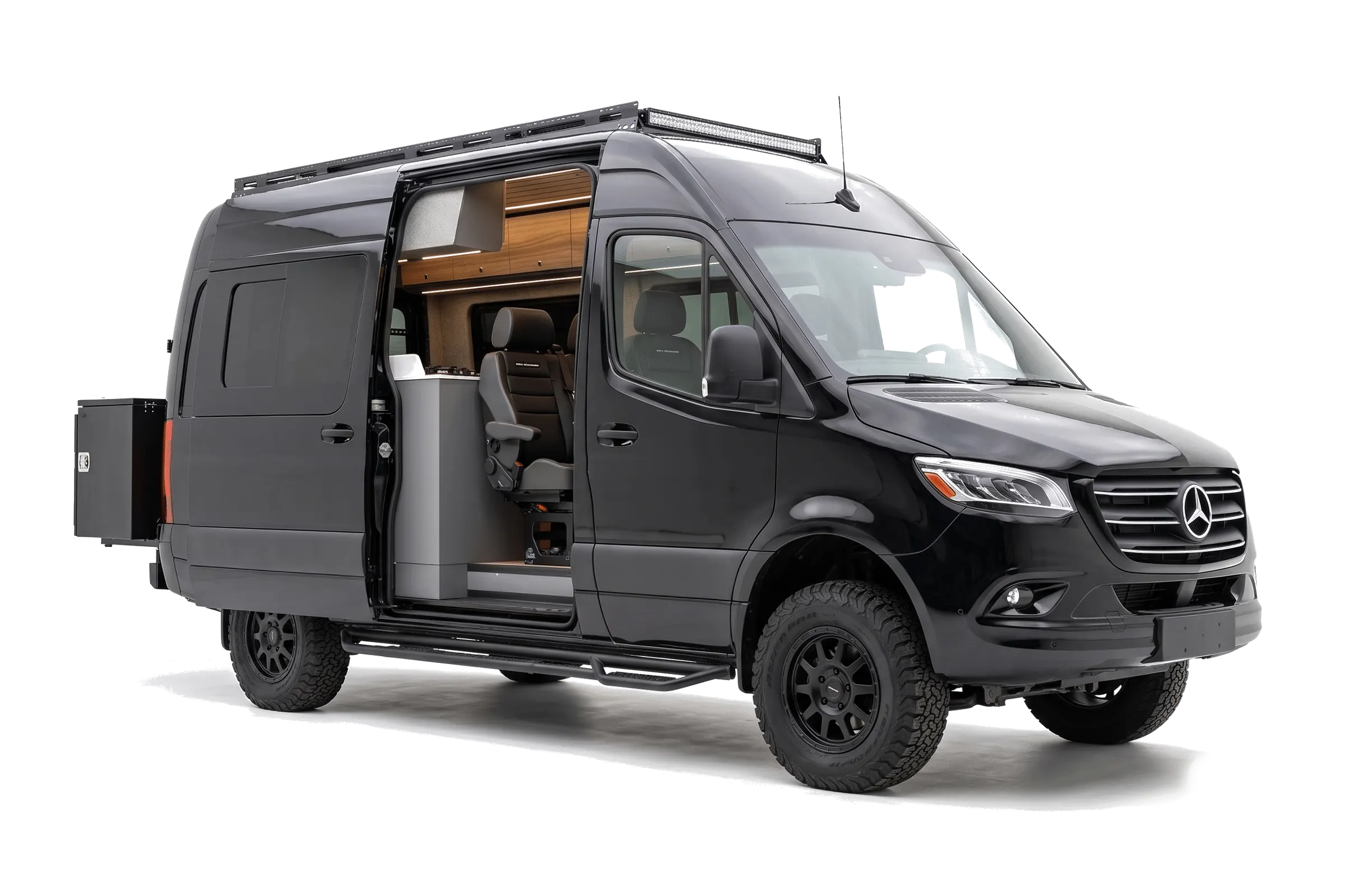

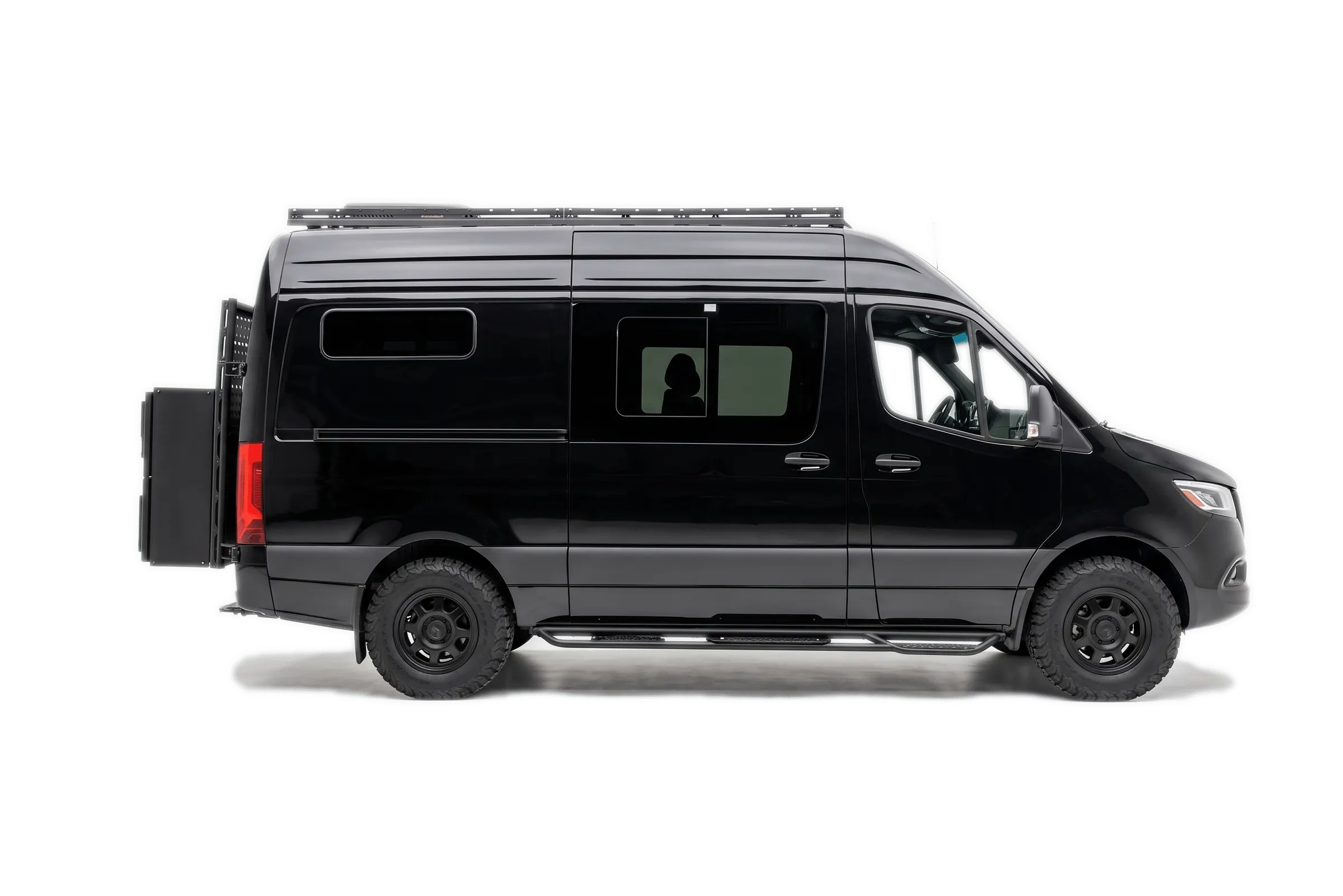

Kinabalu Pro
Built for the serious explorer who wants it all right out of the gate. The Pro Package is our highest-tier, well-equipped configuration. While it requires a larger upfront investment, it bundles our most sought-after premium upgrades together at a significant discount compared to buying them individually. It delivers incredible "bang for your buck," giving you an elite, turnkey expedition vehicle that is ready for the absolute extremes from day one.
Best For: Full-time nomads and experienced overlanders.
The Advantage: Well-equipped, uncompromising capability with the best overall value.
Chassis Details
Vehicle
Van Chassis: Mercedes Sprinter (144 in WB)
Engine: 2.0L I4 High Output (HO) turbo diesel engine
Transmission: 9G-TRONIC 9-speed automatic
Warranty
3 Year / 36,000 Mile Highland Vans Limited Warranty
3 Year / 36,000 Mile Mercedes-Benz New Vehicle Limited Warranty
5 Year / 100,000 Mile Mercedes-Benz Powertrain Warranty
5 Year / 100,000 Mile Mercedes-Benz Corrosion and Outer-Body Warranty
Upgrades
Flat Line Van Co Roof Rack With Fairing
Rear Mini Spring Pack Suspension Upgrade
Systems
Energy System
EcoFlow 5kW Independence System 4000W Inverter
EcoFlow Power Link Sensor
30A Shorepower Port
70A Alternator Charging
Marine-Grade Wiring
Climate Control
Webasto STC2000 Heater with SmarTemp 3.0 Bluetooth Controller
(2x) 12V NomadicArk AirPlus 355 Roof Fans
4-Season 3M Thinsulate Roof & Wall Insulation with Insulated Subfloor
Water System
Flojet Triplex Automatic Water Pump with Pre-Pressurized Accumulator
(2x) 6-Gallon Fresh Water Jerry Cans
Safety
Carbon Monoxide & Smoke Detector
Interior
Kitchen
Baltic Birch Kitchen Galley with Soft-Close Drawer Slides
WilsonArt Solid Surface Countertop

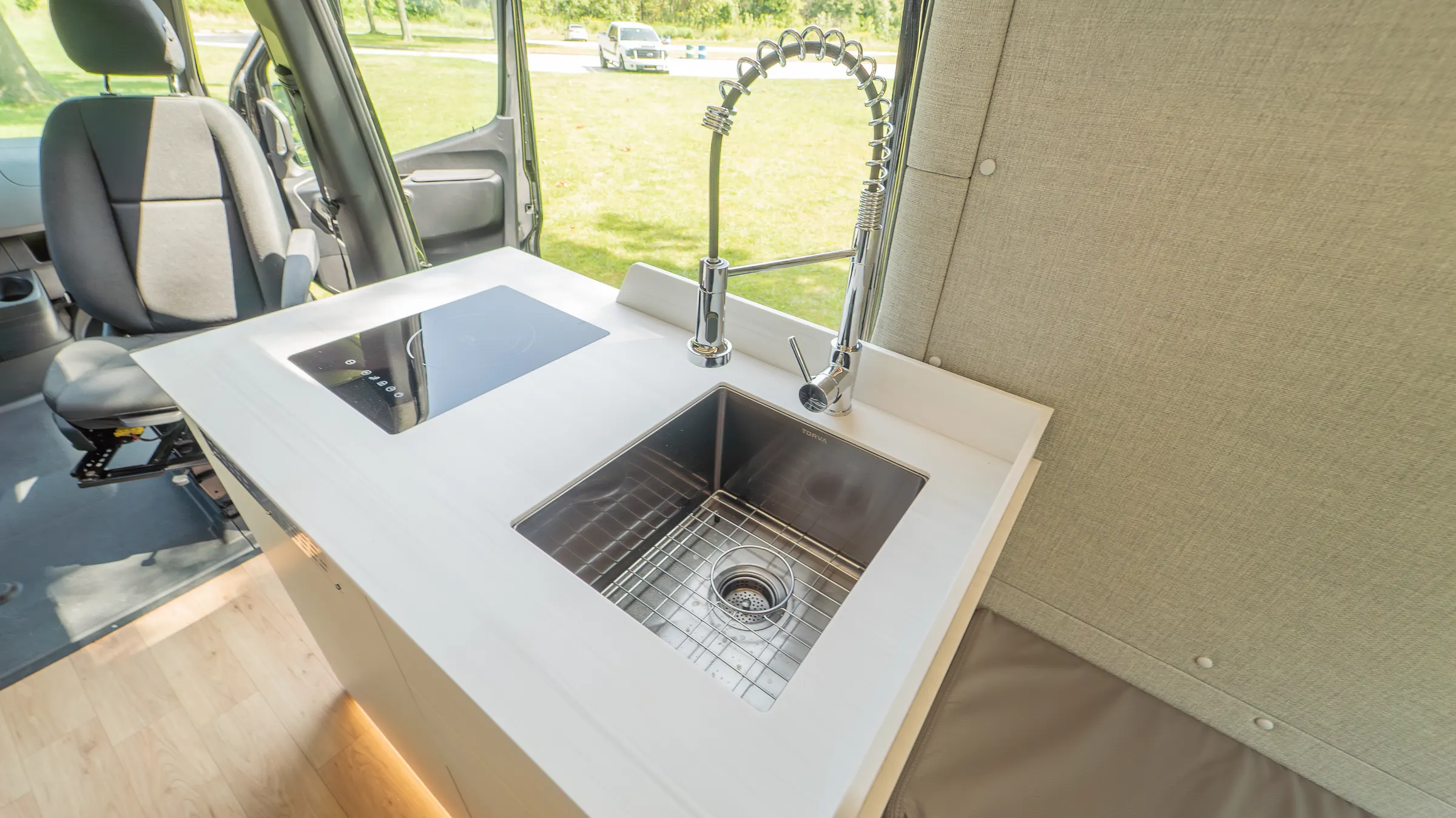

Deep Stainless Steel Sink with Cover & Collapsible Faucet

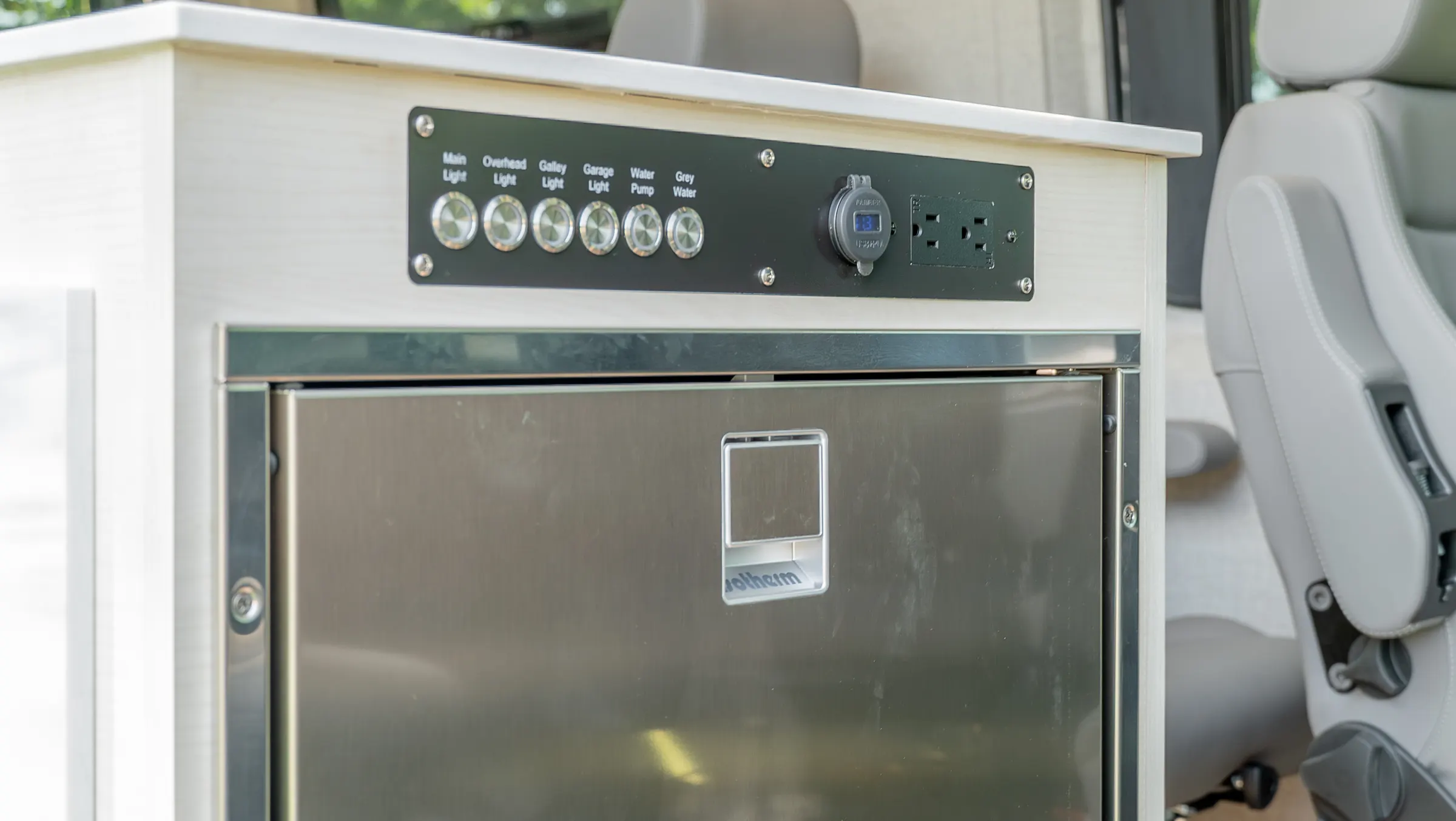

12V Isotherm Cruise 130 Fridge – 4.6 cu ft (Stainless Steel)
True Induction Single-Burner Cooktop
Kitchen Galley Glow Lighting
Living Room
Half Slider Window with Built-In Bug Screen (Driver Side)
Half Slider Window with Built-In Bug Screen (Sliding Door)
(2x) RRE Global Smartseats
(2x) Swivel Lagun Mount Tables
Removable Floor Mount Table
L-Track Mounting Bar System
Upholstered Birch Wall Panels with Automotive-Grade Fabric & Foam
Vegan Leather Ceiling
Lonseal Marine Vinyl Flooring over Insulated Baltic Birch Subfloor
LED Reading Lights with USB Chargers & Dimmable Ceiling Lighting
Bedroom
Bench Bed System with Storage
Roam Rest 5” Memory Foam Mattress
Awning Bunk Windows
Ascent Overhead Cabinets (2x 60” & 48”) with Control Screens
Overhead Cabinet & Bedroom Accent Glow Lighting
Bathroom

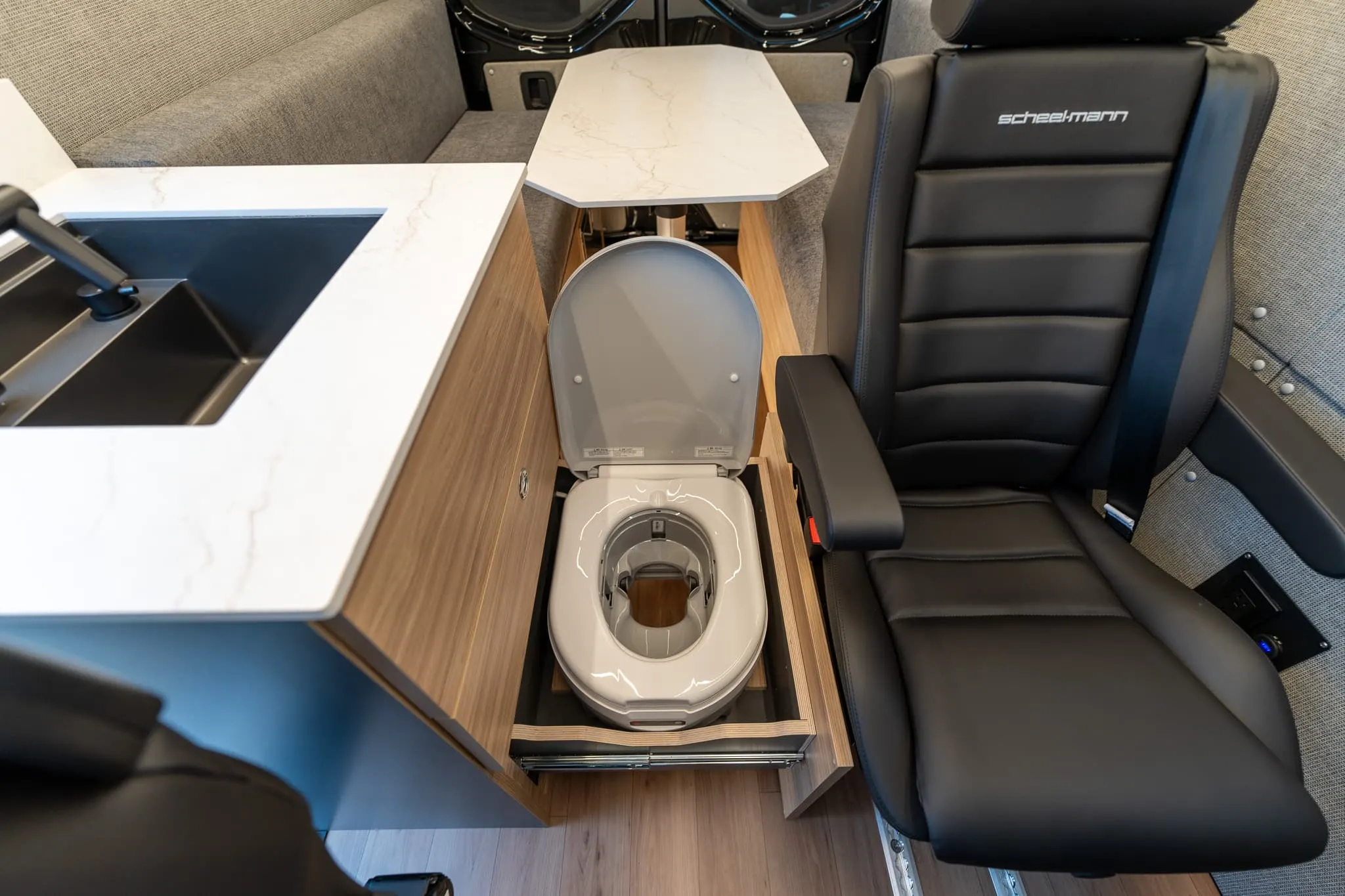

Wrappon Sunny Portable Self-Sealing Toilet
4-Drawer Cabinet with Toilet Storage on Heavy-Duty Slides
Chassis Details
Vehicle
Van Chassis: Mercedes Sprinter (144 in WB)
Engine: 2.0L I4 High Output (HO) turbo diesel engine
Transmission: 9G-TRONIC 9-speed automatic
Warranty
3 Year / 36,000 Mile Highland Vans Limited Warranty
3 Year / 36,000 Mile Mercedes-Benz New Vehicle Limited Warranty
5 Year / 100,000 Mile Mercedes-Benz Powertrain Warranty
5 Year / 100,000 Mile Mercedes-Benz Corrosion and Outer-Body Warranty
Upgrades
VanCompass 4.3 Suspension Kit

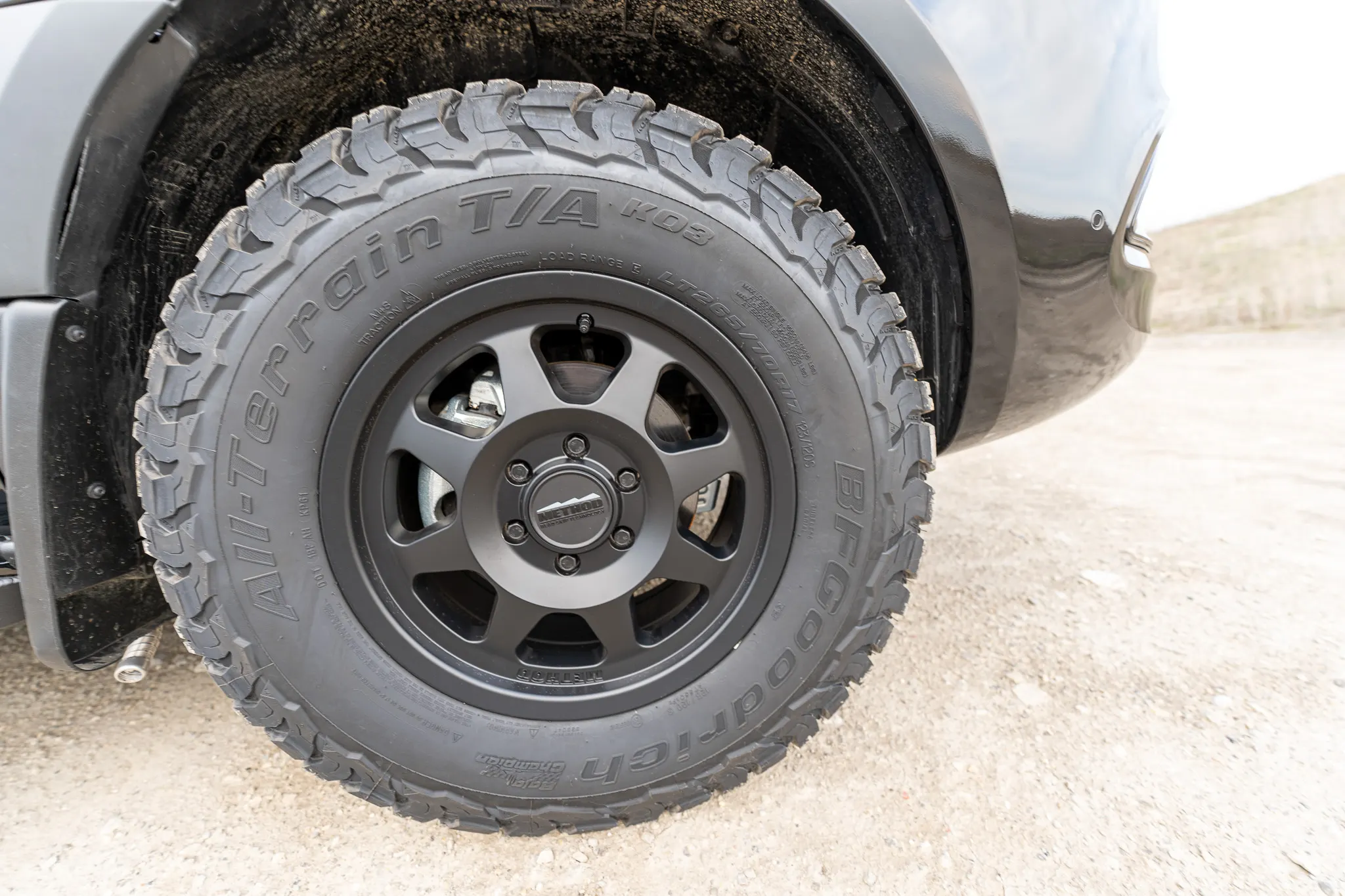

BFG T/A KO3 Tires with Method 701 Wheels (Set of 5)
Agile No Rub Fender Kit
Flatline Van Co Roof Rack with Wind Fairing
Owl Vans Explorer Side Steps

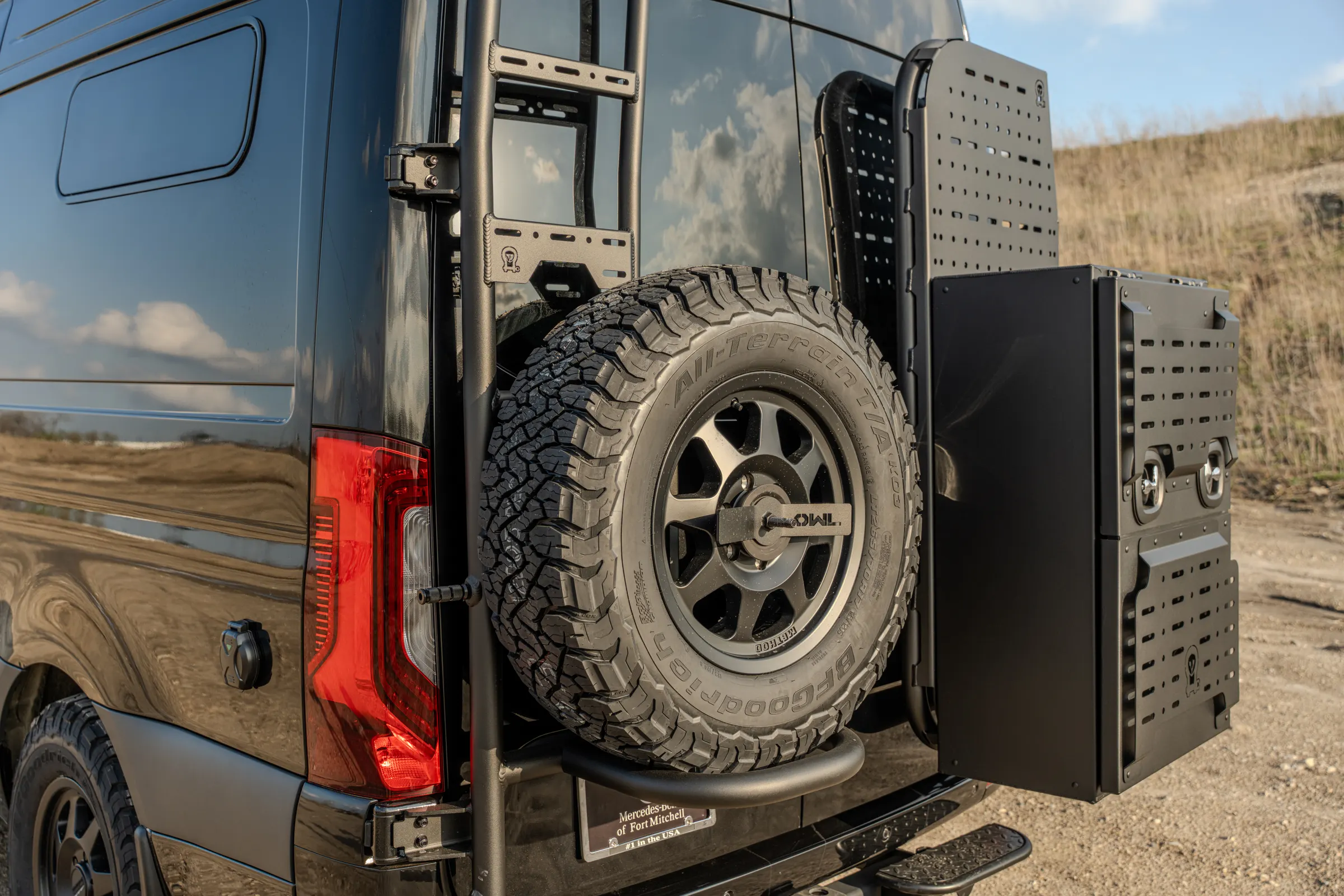

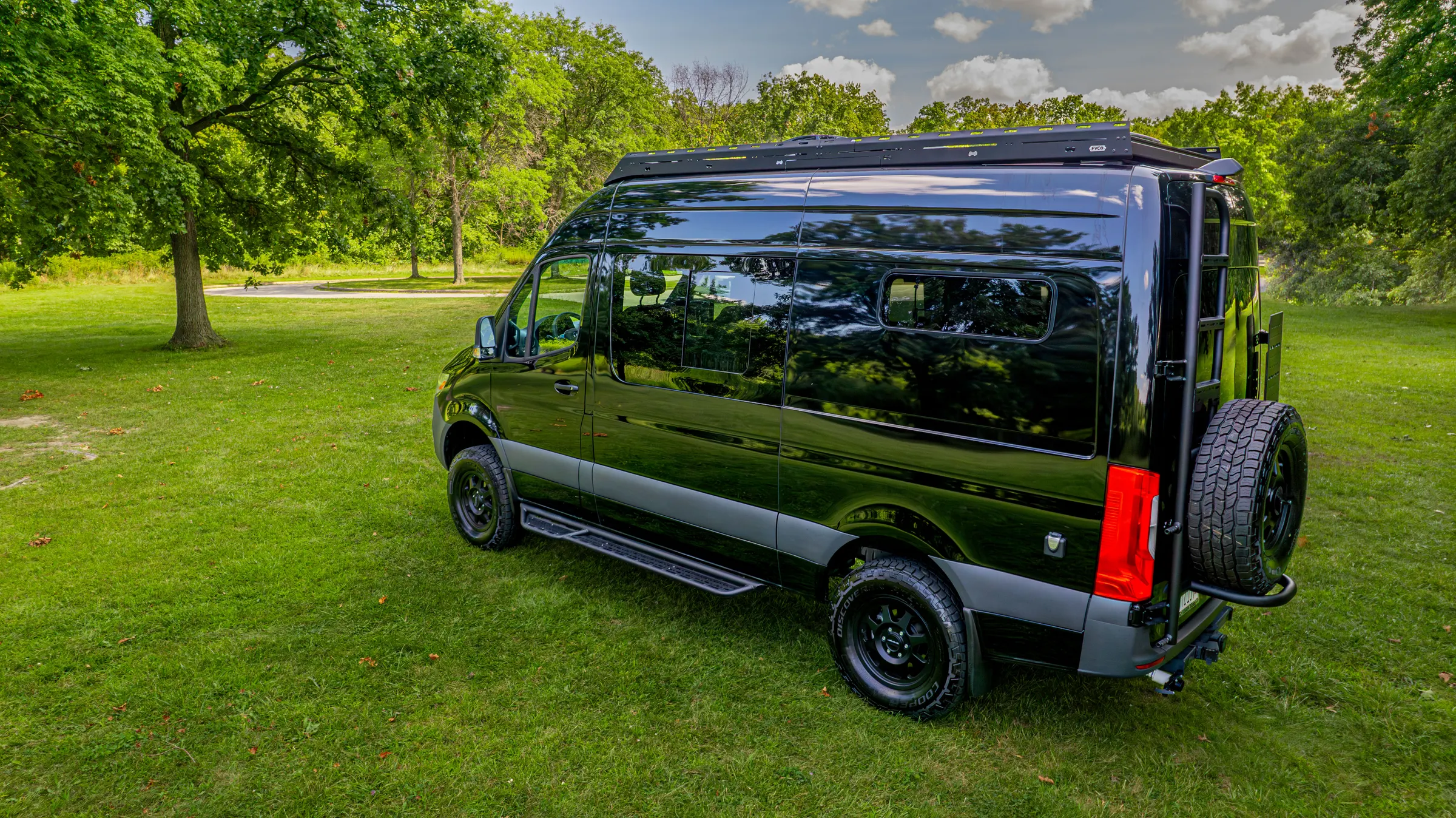

Owl Vans Ladder & Tire Carrier (Driver Side Rear Door)
Owl Vans B2 Pro Cargo Carrier (Passenger Side Rear Door – High Mount)
Owl Vans Monster 40 Storage Box (Passenger Side Rear Door – Low Mount)
Rear Door Stop-Stay Struts
Systems
Energy System
8.4kWh Lithionics GTX 51V Lithium Battery System
Victron MultiPlus-II 3000W Inverter/Charger
Victron Cerbo GX with GX Touch 50 Monitoring Screen

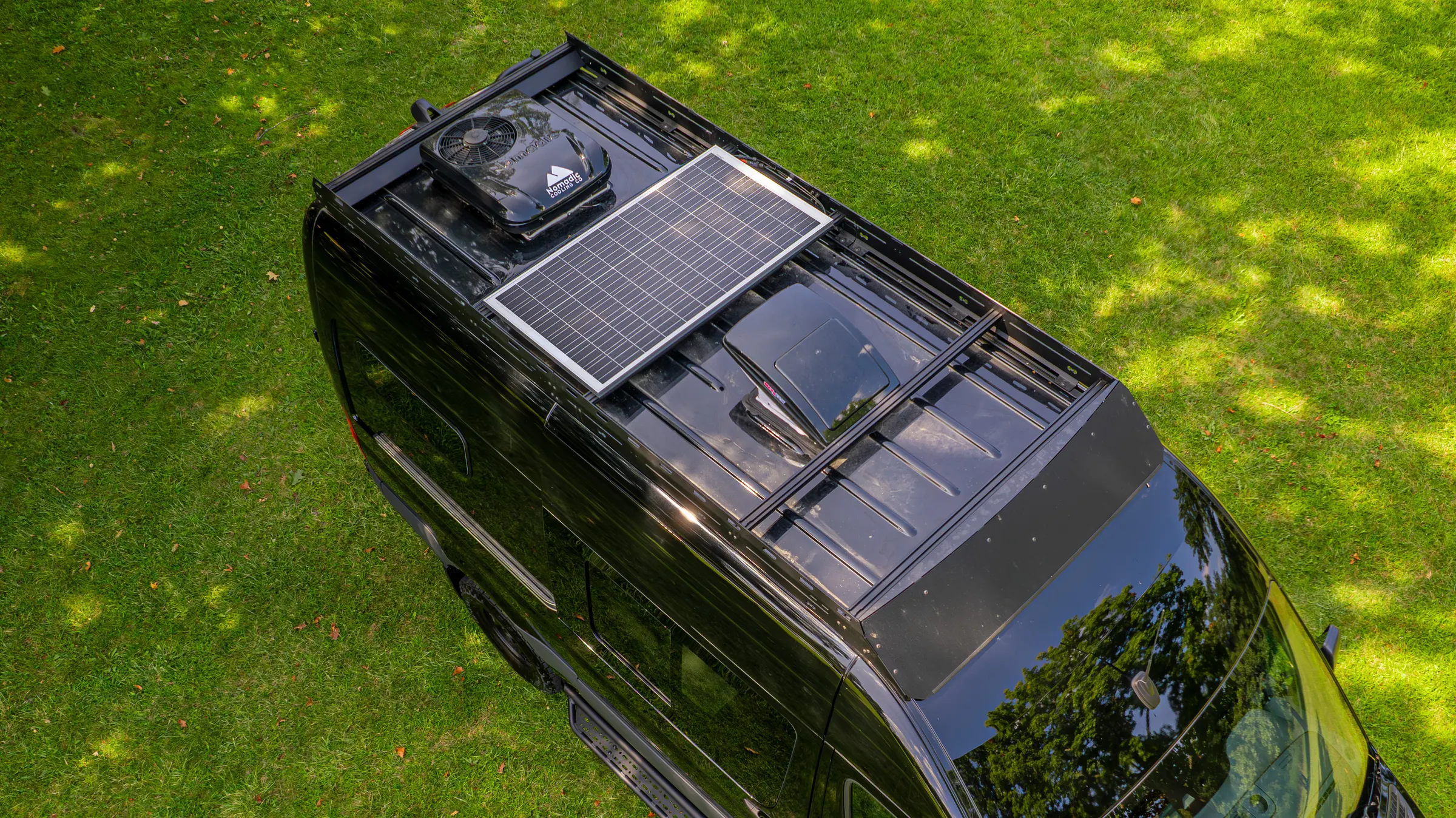

300W Roof-Mounted Solar with Victron SmartSolar MPPT Charge Controller
Victron 100A Buck-Boost DC-DC Converter
Dedicated Dual Alternator Kit with Balmar 280XP High-Amp Alternator
30A Shore Power Port
Marine-Grade Wiring Throughout
Climate Control

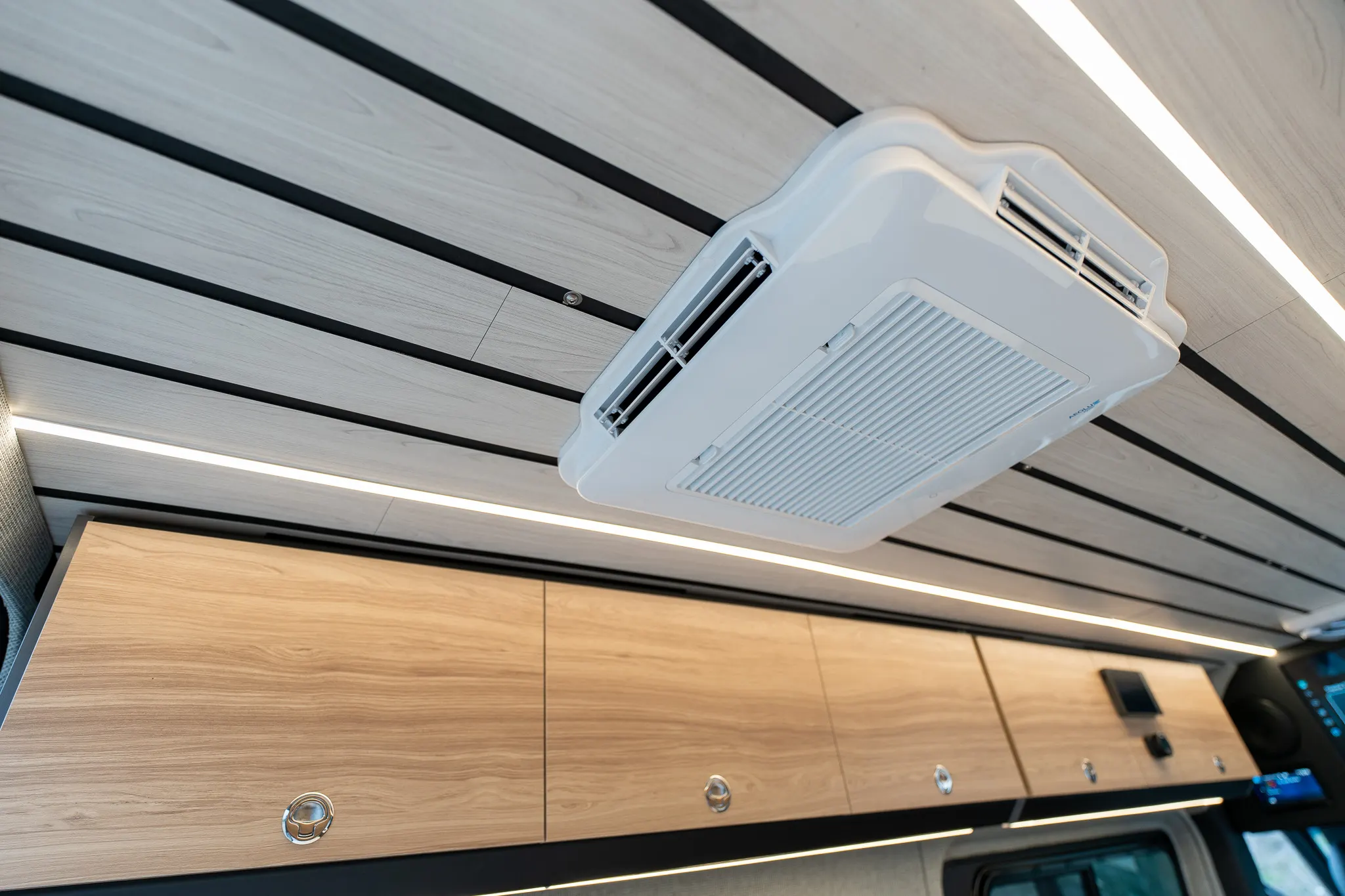

RecPro 48V Air Conditioner – 9,500 BTU
Webasto STC2000 Heater with SmarTemp 3.0 Bluetooth Controller
12V NomadicArk AirPlus 355 Roof Fan – Brushless DC Motor
4-Season 3M Thinsulate Roof & Wall Insulation with Insulated Subfloor
Water System
15-Gallon Fresh Water Tank & 21-Gallon Grey Water Tank with Dump Valve
Pundmann 2.4 Gal AC/DC Water Heater
Exterior Shower System
PEX Plumbing with Flojet Triplex Automatic Water Pump & Pre-Pressurized Accumulator
Safety
Carbon Monoxide & Smoke Detector
Interior
Kitchen
Baltic Birch Kitchen Galley with Soft-Close Drawer Slides
WilsonArt Solid Surface Countertop
Deep Stainless Steel Sink with Cover & Collapsible Faucet
12V Isotherm Cruise 130 Fridge – 4.6 cu ft (Stainless Steel)
True Induction Single-Burner Cooktop
Kitchen Galley Glow Lighting
Living Room
Half Slider Window with Built-In Bug Screen (Driver Side)
Half Slider Window with Built-In Bug Screen (Sliding Door)
(2x) RRE Global Smartseats
(2x) Swivel Lagun Mount Tables
Removable Floor Mount Table
L-Track Mounting Bar System
Upholstered Birch Wall Panels with Automotive-Grade Fabric & Foam
Vegan Leather Ceiling
Lonseal Marine Vinyl Flooring over Insulated Baltic Birch Subfloor
LED Reading Lights with USB Chargers & Dimmable Ceiling Lighting
Smart TV Entertainment Console
Bedroom
Lounge Bed System with Storage
Roam Rest 5” Memory Foam Mattress
Awning Bunk Windows
Ascent Overhead Cabinets (2x 60” & 48”) with Control Screens
Overhead Cabinet & Bedroom Accent Glow Lighting
Bathroom
Wrappon Sunny Portable Self-Sealing Toilet
4-Drawer Cabinet with Toilet Storage on Heavy-Duty Slides
- Included
- Available
- Not included
| Feature | Kinabalu Core$150,000 | Kinabalu Pro$190,000 |
|---|---|---|
| Exterior & Overland | ||
| Driver Side Sliding Window | Included | Included |
| Sliding Door Window | Included | Included |
| Bunk Awning WindowsSet of 2 | Included | Included |
| FVC Roof Rack | Included | Included |
| Owl Vans Explorer Side Steps | Not included | Included |
| Owl Vans Ladder and Tire Carrier | Not included | Included |
| Owl Vans B2 Pro Cargo Carrier | Not included | Included |
| Owl Vans Monster 40 Storage Box | Not included | Included |
| Rear Door StrutsStop-Stay | Not included | Included |
| BFG T/A KO3 Tires + Method 701 WheelsSet of 5 | Not included | Included |
| Agile No Rub Fender Kit | Not included | Included |
| VanCompass 4.3 Suspension Kit | Not included | Included |
| Rear Mini Spring Pack | Included | Not included |
| Plumbing & Water | ||
| Basic Plumbing6 gal fresh · 6 gal grey | Included | Not included |
| Premium Plumbing15 gal fresh · 21 gal grey | Not included | Included |
| Pundmann 2.4 Gal Water Heater | Not included | Included |
| Exterior Shower | Not included | Included |
| Wrappon Sunny Portable Self-Sealing Toilet | Included | Included |
| Electrical Systems | ||
| Electrical System | 5kWh EcoFlow | 8.4kWh Lithionics |
| Rooftop Solar Panels300W | Not included | Included |
| Dedicated Alternator Charging | Not included | Included |
| Climate Control | ||
| NomadicArk AirPlus 355 Roof Fan2 fans in Core · 1 fan in Pro | Included | Included |
| Webasto Heater with Bluetooth Controller | Included | Included |
| RecPro by Houghton 48V Air Conditioner9.5K BTU | Not included | Included |
| Interior & Living | ||
| Marine Vinyl Flooring | Included | Included |
| 4-Season Insulation | Included | Included |
| Upholstered Wall Panels | Included | Included |
| Vegan Leather Ceiling | Included | Included |
| L-Track Mounting Bar System | Included | Included |

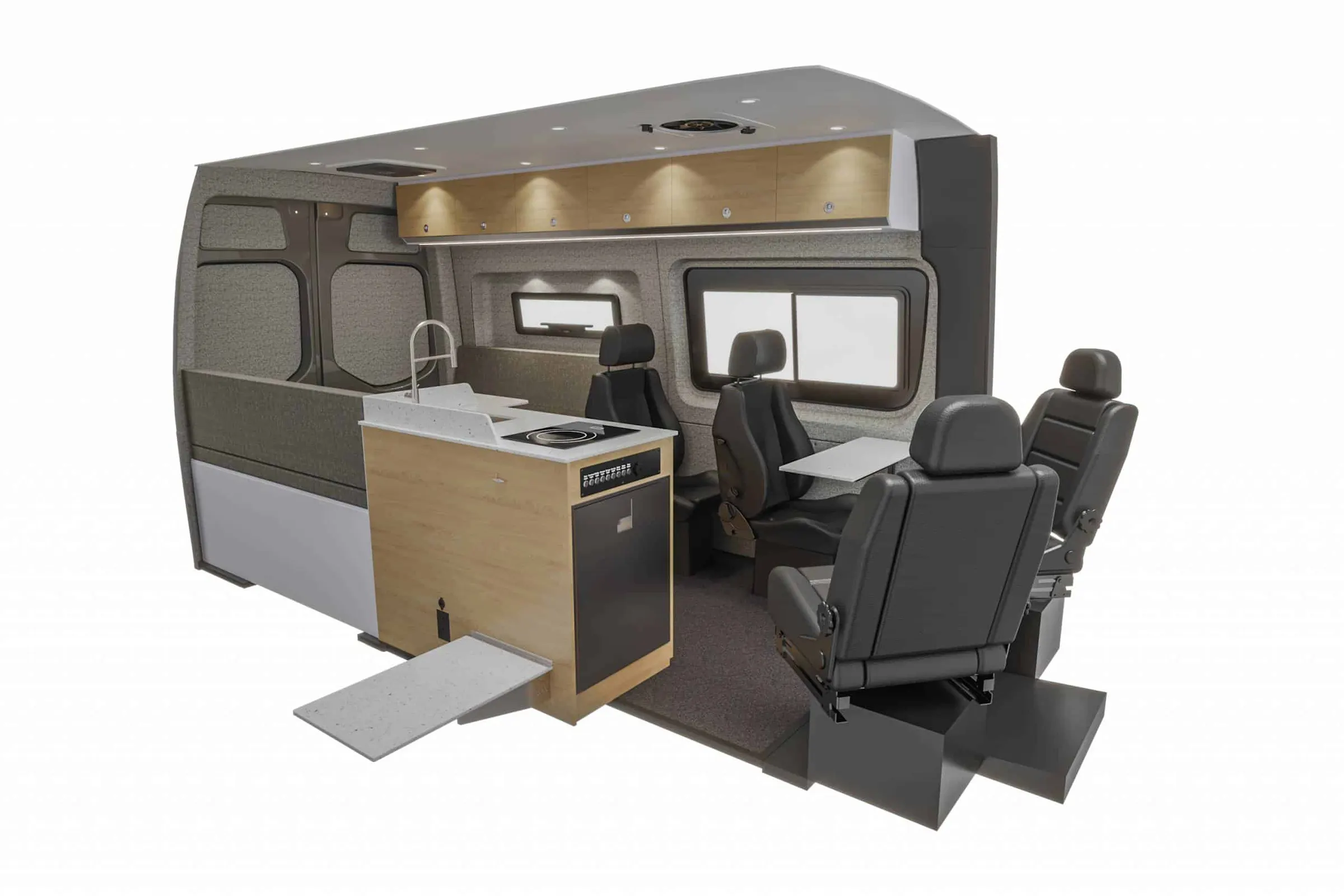

| RRE Global SmartseatSet of 2 | Included | Included |
| Bench Bed System with Storage | Included | Included |
| Roam Rest Memory Foam Mattress | Included | Included |
| Lagun Mount TablesSet of 2 | Included | Included |
| Floor Mount Table | Included | Included |
| Smart TV Entertainment Console | Available | Included |
| 4-Drawer Cabinet with Toilet Storage | Included | Included |
| Kitchen Galley | Included | Included |
| Deep Sink & FaucetSolid surface countertop | Included | Included |
| Isotherm Cruise 130 Stainless Fridge4.6 cu ft | Included | Included |
| Induction Cooktop | Included | Included |
| Overhead Cabinets | Included | Included |
| Accent LED Lighting | Included | Included |
Kinabalu Upgrades and Add-Ons
No two owners load a van the same way. Every upgrade below can be added to a Kinabalu Core or a Kinabalu Pro build at the price shown, so the finished spec follows how you actually use the van.
Add battery and solar capacity for longer stretches off-grid. Add plumbing, a water heater or air conditioning for four-season use. Add racks, carriers, tires and suspension for the load you carry. A mark in the Core or Pro column means the upgrade is already part of that package.
If what you want is not on this list, tell us how you plan to use the van. We build bespoke conversions on the same chassis.
- Included
- Available
- Not included
Electrical Systems
5 upgrades
| Upgrade | Core | Pro | Add-on price |
|---|---|---|---|
| 10kWh EcoFlow SystemLarge capacity at a lower cost | Available | Not included | +$5,000 |
| 8.4kWh Lithionics Battery SystemPremium lithium, serious capacity | Available | Included | +$10,250 |
| 16kWh Lithionics Battery SystemMaximum off-grid capability | Available | Available | Quoted |
| Dedicated Alternator ChargingRequires Lithionics system | Available | Included | +$4,250 |
| Rooftop Solar PanelsMounts to the standard FVC roof rack | Available | Included | +$1,500 |
Plumbing
1 upgrade
| Upgrade | Core | Pro | Add-on price |
|---|---|---|---|
| Premium Plumbing Package15 gal fresh & 21 gal grey tanks, pump, Pundmann water heater | Available | Included | +$7,859 |
Climate Control
2 upgrades
| Upgrade | Core | Pro | Add-on price |
|---|---|---|---|
| RecPro by Houghton 48V Air ConditionerRoof-mounted | Available | Included | +$3,200 |
| Cruise and Comfort Undermount ACFrees the roof for a rooftop tent | Available | Available | Quoted |
Interior
7 upgrades
| Upgrade | Core | Pro | Add-on price |
|---|---|---|---|
| scheel-mann Seat UpgradePremium captain's chairs, priced per seat | Available | Available | +$4,995 |
| Stereo Upgrade with Rear SpeakersFull cabin audio | Available | Available | +$2,500 |
| Rolef Bug Screens — Sliding & Rear Door | Available | Available | +$2,185 |
| Van Essential Window CoversBlackout & insulation | Available | Available | +$1,200 |
| Garage Slide-Out Drawers300 lb capacity | Available | Available | +$2,000 |

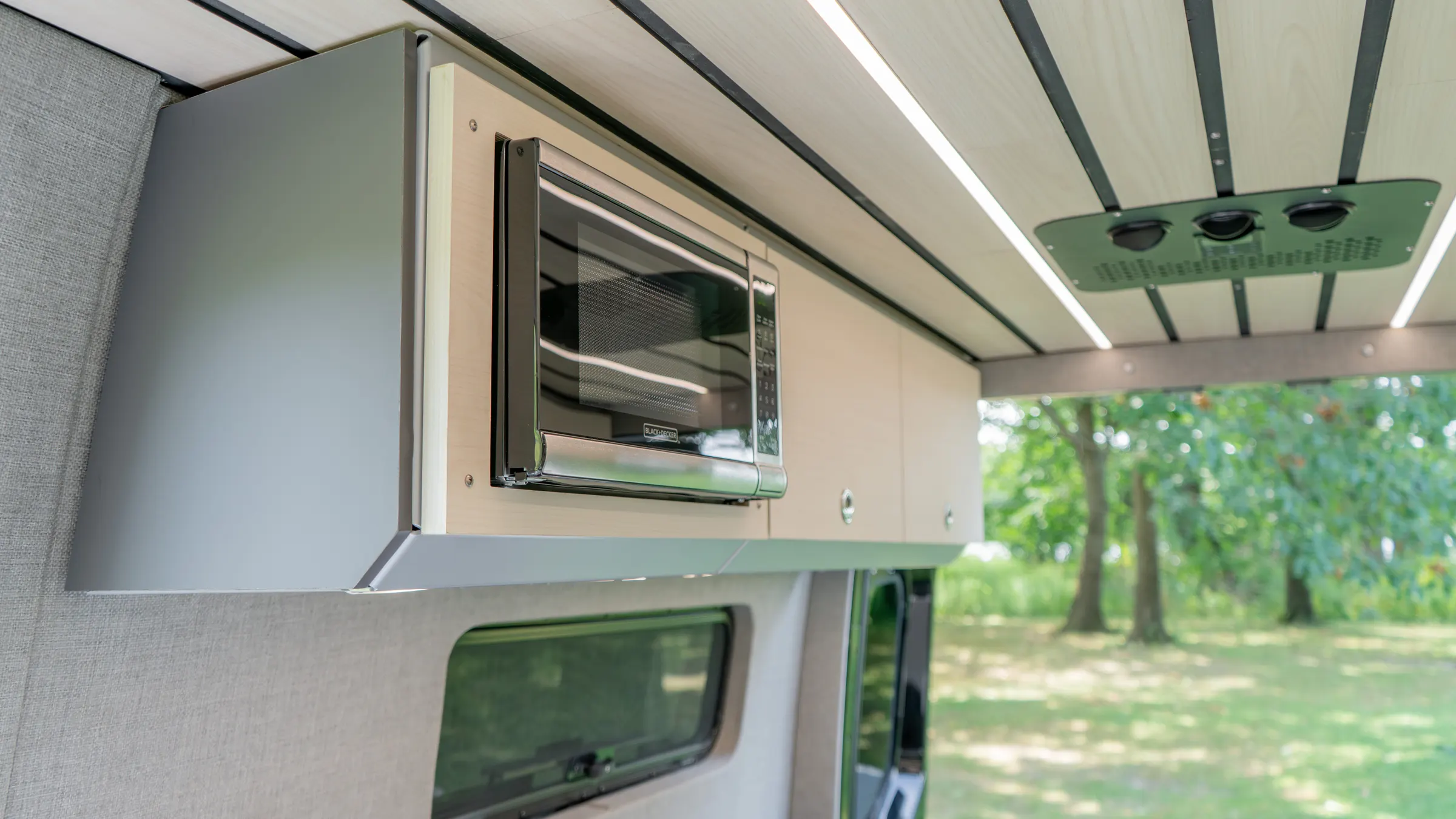

| RV Microwave with Custom Cabinet Enclosure | Available | Available | +$1,400 |
| CLIMA-SHADE Curtain + Cab Headliner ShelfCanyon Adventure Van | Available | Available | +$1,480 |
Exterior
15 upgrades
| Upgrade | Core | Pro | Add-on price |
|---|---|---|---|
| Owl Vans Explorer Side Steps | Available | Included | +$3,010 |
| Owl Vans Ladder and Tire Carrier | Available | Included | +$2,555 |
| Owl Vans B2 Pro Cargo Carrier | Available | Included | +$2,455 |
| Owl Vans Monster 40 Storage Box | Available | Included | +$1,258 |
| Rear Door StrutsStop-Stay | Available | Included | +$649 |
| BFG T/A KO3 Tires + Method 701 WheelsSet of 5 | Available | Included | +$4,045 |
| Agile No Rub Fender Kit | Available | Included | +$1,600 |
| VanCompass 4.3 Suspension Kit | Available | Included | +$5,115 |
| Starlink Mini — Roof Rack Mounted | Available | Available | +$1,200 |
| Fiamma Awning | Available | Available | +$2,445 |
| Off-Road Bumper, Warn Winch & MadMax ShackleCA Tuned · Warn VR Evo 12-S | Available | Available | +$4,937 |
| Owl Vans 1UP Bike TraysSet of 2 | Available | Available | +$650 |
| Agile ARB Onboard Air Compressor | Available | Available | +$2,599 |
| PPF Paint Protection Film Package | Available | Available | +$4,500 |
| Rooftop TentWorks with A/C. On a 144” an undermount A/C is required | Available | Available | +$15,000 |
FAQ

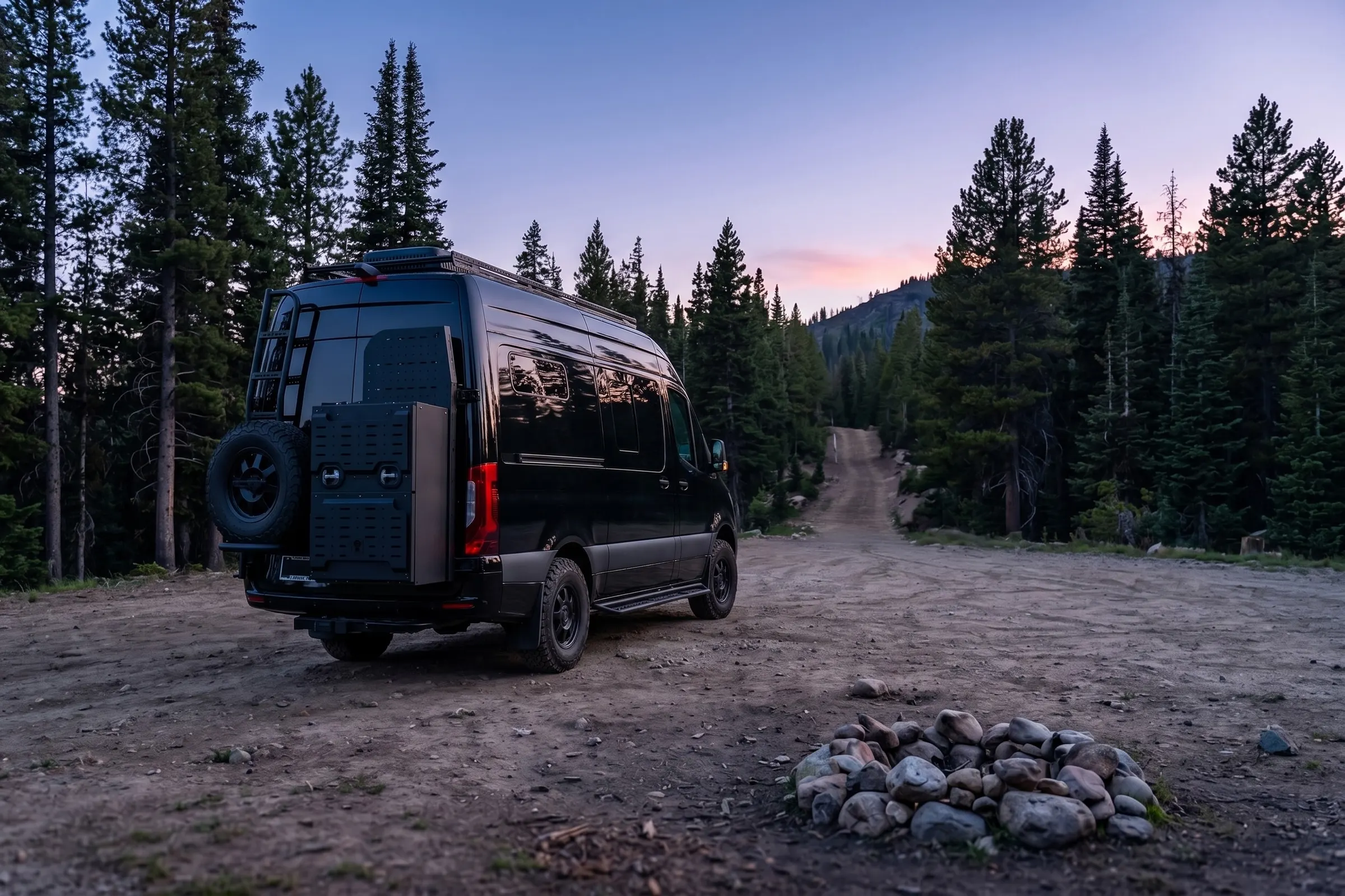

Who is the Kinabalu built for?
The Kinabalu is our do-it-all van, starting at $150,000. It’s built for people who need one vehicle to cover everything: the family car on weekdays, the tailgate rig on Saturday, and the adventure van for long weekends and road trips. If the van has to earn its keep in the city and off-grid and everyone needs a seatbelt this is the one.
How many people can sleep and travel in a Kinabalu?
Four people ride belted, standard. Two up front and two L-track mounted RRE Global Smartseats behind the cab. It’s the only Highland van with seating for four on every build, no packages required. Sleeping is two, on the rear lounge bed with a 5” Roam Rest memory foam mattress. An optional rooftop tent takes sleeping to four. The 144” roof fits the tent or a rooftop air conditioner and not both, so a build with a tent takes an undermount Cruise and Comfort unit instead. You keep the air conditioning either way.
How does the bathroom work?
Every Kinabalu comes standard with a Wrappon Sunny self-sealing dry-flush toilet housed in a 4-drawer cabinet on heavy-duty slides — no black tank, no dump station. Pro builds add an exterior shower system with the Pundmann water heater and the 15-gallon fresh tank for rinse-offs after the trail.
What’s the difference between the Core and Pro power packages?
Same two packages as every Highland Vans build: Core runs a 5 kWh EcoFlow system; Pro steps up to 8.4 kWh of Lithionics lithium with a full Victron system and dedicated alternator charging, plus the exterior package (suspension, KO3 tires on Method 701 wheels, Owl Vans gear), air conditioning, premium plumbing with hot water — and on the Kinabalu, the Smart TV entertainment console. The 8.4 kWh Lithionics upgrade is also available à la carte on a Core build worth considering if you’ll run the TV console off-grid often.
How long can I stay off-grid in a Kinabalu?
Honest answer: it depends on weather, A/C use, and how many people are aboard. Power-wise, the Core’s 5 kWh handles a long weekend of careful use; the Pro’s 8.4 kWh runs about 3–4 days in good sun with normal cooking and modest A/C, and running the engine puts charge back wherever you are parked. Water is the real planning number, because a top-up means finding a fill station: Core carries refill-anywhere 6-gallon jerry cans perfect for the Kinabalu’s natural rhythm of moving every day or two while Pro’s 15-gallon fresh / 21-gallon grey system supports longer stays, though a family of four will work through it faster than a couple.
Can I daily-drive a Kinabalu?
That’s the point of it. The 144” footprint parks in standard spaces, fits surface lots, and drives like a normal Sprinter. Plenty of owners run it as the household’s only vehicle, school runs included. The one honest constraint is height: like every high-roof Sprinter, plan on 10 ft of clearance, which rules out most home garages and some parking structures.
Is the Kinabalu good for tailgating?
It might be the best tailgate vehicle ever built. Slide the doors open, fire up the induction cooktop and the fridge, and put the game on the TV console — all running silent off lithium power. When the lot clears out, you’ve still got a bed, a heater, and a toilet on board.
What’s the deal with the TV and game console?
The Smart TV entertainment console is a Kinabalu exclusive. No other Highland van offers it. It’s included on every Pro build and available as an option on Core. Movie nights at camp, a game console for the back-seat crew on long drives, or a big screen for the tailgate all running off your lithium power bank, no generator, no idling.
Kinabalu vs Aoraki — which 144 is right for me?
Both are 144” builds. Pick the Aoraki (from $145,000) if you travel solo or as a couple and want the Murphy bed with the big rear gear garage. Pick the Kinabalu (from $150,000) if you need four belted seats and would rather have a rear lounge than a cargo bay. Rule of thumb: garage or living room - what do you want to see when you open the back doors?
Kinabalu vs Parbat — which family van?
The Kinabalu is the family van that’s also the family car: four belted seats, easy 144” parking, the TV console for long drives. The Parbat (from $170,000) is the family trip van: the 170” chassis buys the interior shower, the full-height pantry, and the only roof that carries A/C and a rooftop tent together — but it needs a dedicated parking plan. If the van’s main job is daily life with weekends off-grid, Kinabalu; if the main job is the road itself, Parbat.
From$150,000
Book a Consult
Elevate Your Adventure
We offer standard models and when you book a quick consult we’ll map out your perfect setup so you can hit the road with confidence.
- Warranty
- 3 years / 36,000 miles on the conversion. Mercedes-Benz covers the Sprinter chassis: 3 years / 36,000 miles basic, and 5 years / 100,000 miles on the powertrain, the diesel engine and outer-body corrosion.
- Financing
- Through our financing partner intoRV. Rates and terms vary by applicant.
- Built to order
- Every van is built for the person who ordered it. Nothing is off a lot.
Or call 866-751-7358
